Radiadores infrarrojos

Usage

Heating in the industrial processes:
  • paint, lacquer and ink drying
  • plastic softening,
  • wood drying
  • glue activation in the shoe industry,
  • paper drying,
  • food heating
Zone heating
  • Terrace heating in the restaurants and florist's
  • Space heating in the sport, market halls, churches
    • ,
  • working place heating
Infra red cabinets
  • Infra red cabinets

Infra-red radiators for industry

promienniki podczerwieni

Comparison of short, mean, long wave infra-red.

Infra-red Short wave
Mean wave
Long wave
Radiator Halogen radiator Quartz radiator Resistant
Material wolfram strand in quartz pipe
 Fe-Cr-AI. in quartz pipe
 Stop Fe-Cr-AI. in closed steel profile
Radiation efficiency
 92% 60% 40%
Turn on(90% power) 1 sec 30 sec 5 min.
Max emission
 1,2 µm 2,2 µm 4,0 µm
Visible light
 6% 0,50% 0.05%
IR-A 34% 3,50% 1%
IR-B 50% 50% 14%
IR-C 10% 46% 85%
Colour temperature 2500K I300K 800K
Heating method Radiation Radiation and convection Convection
Air movement sensitivity No high Very High
Reflector concentration
 Good focus, recommended Possible Almost impossible
Colour sensitivity
 High Mean Low



radiator grip

grip
SK 11
SK 15
R7s
X
U

Wire terminal

Terminals:
Connector
Fork connector
Mesh connectro
angular insert
Insulated terminal
Wire insert
Special terminal

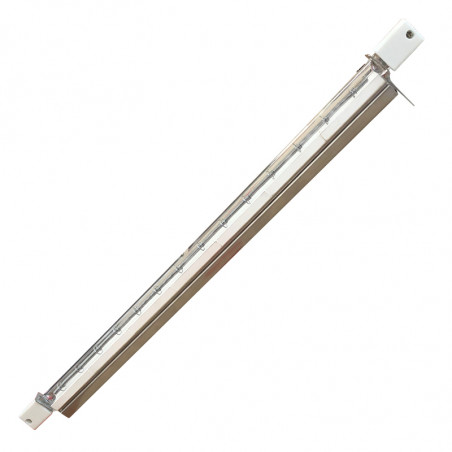

Short wave infra red radiator with SK 15 grip

promiennik podczerwieni promiennik podczerwieni wymiary


Type Power


[W]		 Voltage


[V]		 Total length
C
[mm]		 Glower length
W
[mm]		 Radiator diameter
D
[mm]		 Reflector Temperature coefficient
K		 Operation position Wire length
X
[mm]
13908Z 300 230 122 60 11 none 2500 horizontal 140/140
13169Z/98 500 235 227 159 11 Reflector 2300 horizontal 200/200
13842Z 700 240 216 150 11 none 2600 horizontal 140/140
13195Z/98 1000 235 355 272 11 Reflector 2500 horizontal 200/200
13713Z/98 1000 235 355 272 11 Reflector 2500 arbitrary 200/200
13713Z/98 1000 235 355 272 11 Reflector 2400 arbitrary 300/300
14187Z/98 1000 400 355 274 11 Reflector 2500 horizontal 200/200
13561Z/98 1200 144 228 155 11 Reflector 2400 horizontal 150/150
14134Z/98 1200 235 224 155 11 Reflector 2600 horizontal 150/150
14135Z/98 1600 235 228 155 11 Reflector 2600 horizontal 150/150
13168Z 2000 235 355 280 11 none 2500 arbitrary 200/200
14103Z/98 2000 235 355 280 11 Reflector 2400 horizontal 230/230
13213Z/98F 2000 235 355 280 11 Reflector 2400 horizontal 200/200
14136Z/98 2000 235 355 280 11 Reflector 2600 horizontal 200/200
14193Z/98 2000 235 360 285 11 Reflector 2400 horizontal 160/160
13168Z/98 2000 235 355 280 11 Reflector 2500 arbitrary 200/200
13214Z/98 2000 230 656 500 11 Reflector 2500 horizontal 500/500
14132Z/98 2000 235 787 696 11 Reflector 2300 horizontal 500/500
14173Z/98 2000 400 355 274 11 Reflector 2600 horizontal 300/300
14188Z/98 2000 400 355 274 11 Reflector 2600 horizontal 200/200
14137Z/98 2500 235 355 280 11 Reflector 2600 horizontal 200/200
14143Z/98 2500 400 355 280 11 Reflector 2600 horizontal 200/200
14121Z/98 3000 235 355 280 11 Reflector 2550 horizontal 230/230
14194Z/98 3000 235 360 285 11 Reflector 2550 horizontal 160/160
14107Z 3000 230 787 700 11 none 2400 horizontal 500/500
14107Z/98 3000 230 787 696 11 Reflector 2300 horizontal 500/500
14175Z 3000 400 355 280 11 none 2700 horizontal 230/230
14144Z/98 3000 400 355 280 11 Reflector 2250 horizontal 200/200


Short wave infra red radiator with R7S grip

promiennik podczerwieni krótkofalowy promiennik podczerwieni krótkofalowy wymiary

Type Power


[W]		 Voltage


[V]		 Total length
C
[mm]		 Glower length
W
[mm]		 Radiator diameter
D
[mm]		 Reflector Temperature coefficient
K		 Operation position Wire length X [mm]
13908R 300 230 118 60 11 none 2500 horizontal -
13169R 500 235 221 165 11 none 2450 horizontal -
13790R 650 220 551 4-95 11 none 2200 horizontal -
13207/998 1000 110 204 126 11 Reflector 2400 arbitrary 200/200
1600T3/7 1600 240 499 406 11 translucent 2550 horizontal -
13252/99 1600 600 732 418 11 none 2700 horizontal 190/190
14140C/98 2500 400 600 506 11 Reflector 2550 horizontal 300/300
14120R 2500 480 731 418 11 none 2550 horizontal -
2500T3/7 2500 480 726 638 11 translucent 2550 horizontal -
14168C 2500 575 730 638 11 none 2550 horizontal 146/146
13848/99 2500 600 1059 638 11 none 2550 horizontal 146/146
14156C/98 3000 400 600 506 11 Reflector 2550 horizontal 300/300
14177C/98 3000 400 784 700 11 Reflector 2450 horizontal 300/300


Short wave infra red radiator with X grip

promiennik podczerwieni z ucchwytem x promiennik podczerwieni z ucchwytem x wymiary
Type Power


[W]		 Voltage


[V]		 Total length
C
[mm]		 Glower length
W
[mm]		 Radiator diameter
D
[mm]		 Reflector Temperature coefficient
K		 Operation position
13169X 500 120 355 142 11 none 2450 horizontal
13169X/98 500 120 355 142 11 Reflector 2350 horizontal
13195X 1000 235 483 272 11 none 2500 horizontal
13195X/98 1000 235 483 272 11 Reflector 2400 horizontal
13713X 1000 235 483 272 11 none 2500 arbitrary
13713X/98 1000 235 483 272 11 Reflector 2400 arbitrary
13168X 2000 235 483 280 11 none 2500 arbitrary
13168X/98 2000 235 483 280 11 Reflector 2400 arbitrary
13245X 2000 400 625 416 11 none 2450 horizontal
13245X/98 2000 400 625 416 11 Reflector 2350 horizontal
13765X/98 2000 400 625 410 11 Reflector 2350 arbitrary
13765X 2000 400 625 410 11 none 2450 arbitrary
14141X 2000 400 483 282 11 none 2700 arbitrary
13215X 3000 400 915 700 11 none 2450 horizontal
13230X 3000 400 915 700 11 none 2450 arbitrary
13230X/98 3000 400 915 700 11 Reflector 2350 arbitrary


Short wave infra red radiator with U grip


promienniki podczerwieni z uchwytem U promienniki podczerwieni z uchwytem U wymiary


Type Power


[W]		 Voltage


[V]		 Total length
C
[mm]		 Glower length
W
[mm]		 Radiator diameter
D
[mm]		 Reflector Temperature coefficient
K		 Operation position Wire length
X
[mm]
500T3 500 120 224 127 11 translucent 2500 horizontal 146/146
13195U 1000 235 346 270 11 none 2500 horizontal 202/202
1000T3 1000 240 353 254 11 translucent 2500 horizontal 146/146
1000T3/CL 1000 240 306 254 11 none 2500 horizontal 146/146
13561U 1200 144 220 155 11 none 2400 horizontal 150/150
13561U/98 1200 144 220 155 11 Reflector 2300 horizontal 150/150
13568U 1600 144 220 155 11 none 2500 horizontal 150/150
13568U/98 1600 144 220 155 11 Reflector 2400 horizontal 150/150
1600T3/CL 1600 240 503 406 11 none 2500 horizontal 146/146
1600T3 1600 277 503 404 11 translucent 2500 horizontal 146/146
2000T3/CL 2000 240 305 254 11 none 2500 arbitrary 146/146
2500T3 2500 480 731 638 11 translucent 2550 horizontal 146/146
2500T3/CL 2500 480 731 638 11 none 2550 horizontal 146/146
3800T3 3800 575 1062 965 11 Reflector 2500 horizontal 146/146


Short wave infra red radiator with V grip

promieniki podczerwieni z uchwytem V promieniki podczerwieni z uchwytem V wymiary

Type Power


[W]		 Voltage


[V]		 Total length
C
[mm]		 Glower length
W
[mm]		 Radiator diameter
D
[mm]		 Reflector Temperature coefficient
K		 Operation position Wire length X [mm]
13168V 2000 235 350 280 11 none 2450 arbitrary 117/138
14189V 2000 235 350 280 11 none 2450 arbitrary 85/85
14182V 2500 235 350 284 11 none 2450 arbitrary 117/138
14190V 2500 235 350 284 11 none 2450 arbitrary 85/85


Special short wave infra red radiator

promienniki podczerwieni specjalne promienniki podczerwieni specjalne wymiary


Type Power


[W]		 Voltage


[V]		 Total length
C
[mm]		 Glower length
W
[mm]		 Radiator diameter
D
[mm]		 Reflector Temperature coefficient
K		 Operation position Wire length
X
[mm]
13939F-V 400 110 148 94 11 none 2150 horizontal 105/105
13939F-V 400 230 148 94 11 none 2250 horizontal 105/105
