Ke-led-ea 3003-p (corto) | Lámpara fluorescente LED
  • Ke-led-ea 3003-p (corto) | Lámpara fluorescente LED

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: KIRA Leuchten

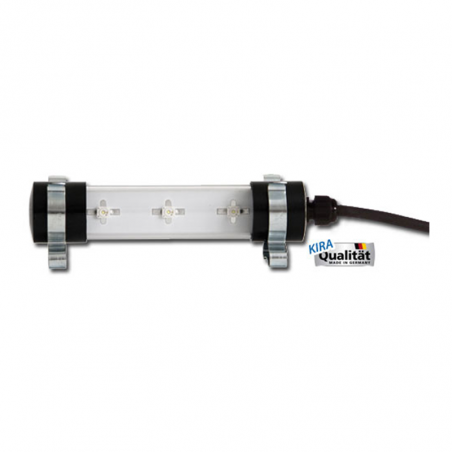

Ke-led-ea 3003-p (corto) | Lámpara fluorescente LED

Thanks to its compact size of 150 x 33mm, the KE-LED-EA 3003-P is ideally suited for mounting in machines and systems with narrow or limited mounting possibilities for lighting. By means of the spring steel clamps included in the scope of delivery, the luminaire can be installed quickly and easily and the illumination can be adjusted optimally.

Technical Data KE-LED-EA 3003-P
Illuminant 3 POWER LEDs / 5000 Kelvin
Power 3 W
Luminous flux ca. 300 lumenów
Voltage 24V
Protective tube plexi glas, 30 mm Ø
Diffusor without (optinal available)
End caps ABS, black
Fixing clamps 2 fixing clamps made out of steel
Cable 5 m H05RN-F 2 x 1,0 mm2 (another lengths on request)
Plug without
Protection (IP) IP54
Protection class III
Length / Weight 150 mm / 0,4 kg
Ambient temperature range -10°C - +40°C


Type Dimensions in mm
a b c d e f
KE-LED-EA 3003-P 150 33 30 94 25 20


2 fixing clamps included in the scope of delivery
