Fabricante: KIRA Leuchten

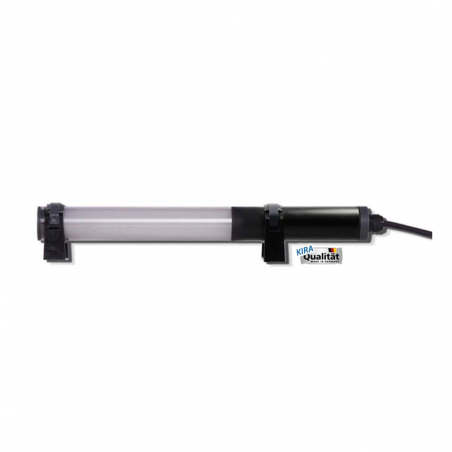

Ke-LED-EA 4010-P / HB | Luminaria de tubo LED

Despite its compact length of 368mm, the KE-LED-EA 4010-P / HB lamp offers a high light output thanks to 10 high-intensity POWER LED modules. A diffuser film integrated into the protective tube provides glare-free and pleasant working light. It can be operated almost without any external ballast in all machines, plants and vehicles of all kinds. The lamp is also available with an integrated on / off switch.

Technical Data KE-LED-EA 4006-P/HB | KE-LED-EA 4010-P/HB
Illuminant: 10 POWER LEDs (12V Version only 9 POWER LEDs) / 5000 Kelvin
Lumen: ca. 900 Lm
Voltage: 230V | 110V | 42V | 24V | 12V
Protection tube: PMMA, 40 mm Ø
Fixing clamps: 2 fixing clamps
Cable: 5m H05RN-F 2 x 1,00 mm2
Plug: contour plug (only 230V version)
Protection category: IP65
Protection class: II (bzw. III)
Identification: CE
Length of the lamp: see dimensional drawing

Illuminant: 10 POWER LED / 5000K

The luminaire is available in the following dimensions

Type w/o switch Voltage Amp. Plug Weight Art-No.
KE-LED-EA 4010-P / 230-HB 230 V AC 0,065 Euro- 0,5 kg 131324
KE-LED-EA 4010-P / 110-HB 110 V AC / DC 0,160 ohne 0,5 kg 131325
KE-LED-EA 4010-P / 42-HB 42 V AC / DC 0,160 ohne 0,5 kg 131326
KE-LED-EA 4010-P / 24-HB 24 V AC / DC 0,330 ohne 0,5 kg 131339
KE-LED-EA 4009-P / 12-HB 12 V AC / DC 0,330 ohne 0,5 kg 131342

12V version: available with max. 9 LED modules

Type with switch Voltage Amp. Plug Weight Art-No.
KE-LED-EA 4010-P / 230-HB-S 230 V AC 0,075 Euro- 0,500 kg 131414
KE-LED-EA 4010-P / 110-HB-S 110 V AC / DC 0,075 ohne 0,500 kg 131433
KE-LED-EA 4010-P / 42-HB-S 42 V AC / DC 0,170 ohne 0,500 kg 131434
KE-LED-EA 4010-P / 24-HB-S 24 V AC / DC 0,330 ohne 0,500 kg 131323
KE-LED-EA 4009-P / 12-HB-S 12 V AC / DC 0,600 ohne 0,500 kg 131435

12V version: available with max. 9 LED modules

VERSION WITH SWITCH
  Dimensions in mm
Type with on/off switch a b c d
KE-LED-EA 40 ...-P / ... HB 409 25 220 40

VERSION WITHOUT SWITCH
  Dimensions in mm
Type w/o on/off switch a b c d
KE-LED-EA 40 ...-P / ... HB 380 25 220 40

Accesories

Type Description Art.-No.
BFK D40 Fixing clamp 290056
40 KM Fixation clamp with magnet 291600
STA 40 Metal fixture with fixing clamps BFK 291402
SELV Trafos see standard accessoires

  for tube- Dimensions in mm Number (f)
Type Art-No. diameter a b c d e mounting holes
BFK D40 290056 40mm 67 25 20 40,4 58 1x

2 fixing clamps included in the scope of delivery
