M2DL - Fuente de alimentación de bucle actual
  • M2DL - Fuente de alimentación de bucle actual

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: M-SYSTEM

M2DL - Fuente de alimentación de bucle actual

  • M2DL

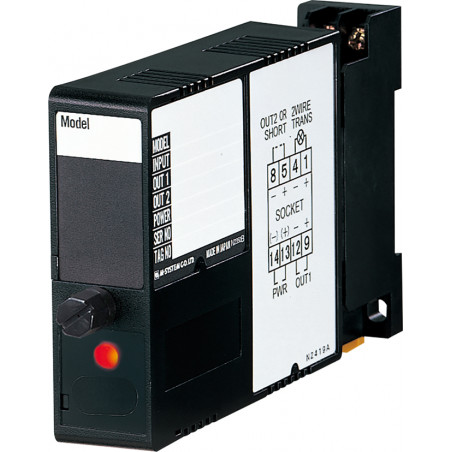

M2DL is a current loop power supply.


Features

  • Powers 4… 20mA DC current loop
  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Not insulated
  • Short-circuit protection
  • Power supply at the output - 24 V DC
  • AC / DC power

Input: 4… 20mA
Output: 1… 5V
Power supply: AC / DC


< table border = "1" style = "width: 100%;"> Wire connection M3 screw terminals Separation Input / Output / Power Dielectric strength DC: 2000V AC
When powered by AC: 1500V AC Range Selection None Double Exit < td style = "padding-left: 20px"> None Power AC / DC Working Temperature - 5 to + 55 ° C Mounting DIN rail Dimensions 23x76x124mm < / table>
