Lámpara LED - LED 025
  • Lámpara LED - LED 025

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: STEGO

Lámpara LED - LED 025

LED lamp - LED 025


Zdjęcie 1: LED 025 with on/off switch and magnet fixing

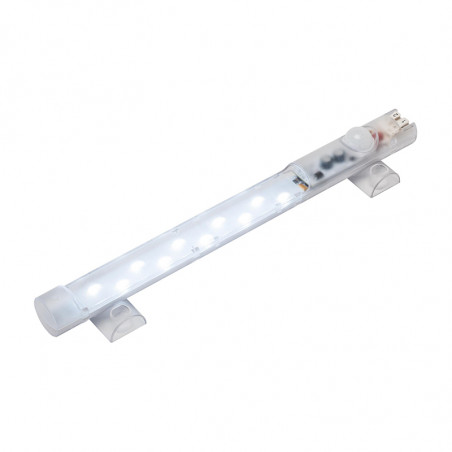

Zdjęcie 2: LED 025 with movement sensor and screw fixing


Wide voltage range
Integrated power unit
Long-lived and maintenance-free by LED technology
Daisy chain
On/off switch or movement sensor
Magnet, screw or clip fixing

The lamp series LED 025 is suitable for all types of panels and enclosures, especially where space is at a premium The lamps have a very long service life thanks to the use of LED technology. Three different fixing options provide more flexibility for installation. The power output allows up to 10 lamps to be connected to each other (12VDC versions up to 5 lamps). Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs the lamp can quickly be connected.



Lampa diodowa - LED 025


Technical data

Power consumption max. 5 W
Luminosity 400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb)
Lamp type LED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000K
Service life 60,000h at +20°C (+68°F)
Connection 2-pole connector with snap lock
AC: max. 2.5A / 240VAC, color: white
DC: max. 2.5A / 60VDC, color: blue
Mounting magnet fixing or screw fixing (M5), clip fixing (M6),
torque 2Nm max.
Casing plastic, transparent
Dimensions 351 x 34 x 32 mm (mocowanie magnetyczne)
351 x 36 x 32 mm (mocowanie śrubowe)
Operating/Storage temperature -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F)
Protection type/Protection class IP20 / II (double insulated), 12VDC: IP20 / III (extra-low voltage)
Approvals APV + UL notification
Accessories plug male and female, power cables
and cascadable

Catalog number
Art. No.
Magnet fixing		 Art. No.
Screw fixing		 Operating voltage Switch Weight (approx.)

02540.0-00

02540.0-01

 AC 100-240 V, 50/60 Hz (min. AC 90 V, max. AC 265 V) on/off light switch 0,2 kg

02540.1-00

02540.1-01

 DC 24-48 V (min. DC 20 V, max. DC 60 V) on/off light switch 0,2 kg

LED lamp - LED 025 - Accessories

Lampa diodowa - LED 025 - akcesoria


Power cables with plugs

Art. No Model Lenght Voltage type Color Use for Approvals2

244356

 connection cable 2 x 1,5 mm2 with female connector 2,0 m AC connectors: white; cable: white power input VDE

244357

 connection cable 2 x AWG 16 with female connector 2,0 m AC connectors: white; cable: white power input VDE + UL

244360

 connection cable 2 x 1,5 mm  with female connector 2,0 m DC connectors: blue; cable: white power input VDE

244361

 connection cable 2 x AWG 16 with female connector 2,0 m DC connectors: blue; cable: white power input VDE + UL

244358

 connection cable 2 x 1,5 mm2 with 2 connectors 1,0 m AC connectors: white; cable: white daisy chain VDE

244359

 connection cable 2 x AWG 16 with 2 connectors 1,0 m AC connectors: white; cable: white daisy chain VDE + UL

244362

 connection cable 2 x 1,5 mm2 with 2 connectors 1,0 m DC connectors: blue; cable: white daisy chain VDE

244363

 connection cable 2 x AWG 16 with 2 connectors 1,0 m DC connectors: blue; cable: white daisy chain VDE + UL


male / female connectors

Att. No Model Voltage type Color Use for Approvals

264057

 female connector AC white power input VDE + UL

264058

 male connector AC white power output VDE + UL

264059

 female connector DC blue power input VDE + UL

264060

 male connector DC blue power output VDE + UL

Compact fluorescent lamps and applications inside cabinets.

Kompaktowe lampy i fluorescencyjne do zastosowań wewnątrz szaf.


Type Voltage [Vac] Frequency
[Hz]		 Power
[W]		 LED Weight [kg] Certifications
Quantity Colour
LED LAMPS

CLG-L235

 230 50/60  5.0/5.0  8 White 0.200 CE

CLG-L235


Typ Length
[mm]		 Voltage [Vac] Frequency
[Hz]		 Power
[W]		 Type of light Cable length
[mm]		 Certifications
LAMPY FLUORESCENCYJNE

CLG-R236

 277 230 50 6 T5 / G5 1,3 CE GS

CLG-R238

 354 230 50 8 T5 / G5 1,8 CE

CLG-R2313

 581 230 50 13 T5 / G5 1,8 CE

CLG-T236

 270 230 50 6 T4 / G5 1,8 CE GS

CLG-T238

 390 230 50 8 T4 / G5 1,8 CE GS

CLG-T2312

 425 230 50 12 T4 / G5 1,8 CE GS

CLG-T2316

 516 230 50 16 T4 / G5 1,8 CE

CLG-T2320

 616 230 50 20 T4 / G5 1,8 CE

CLG-SS2310

 498 230 50 10 T8 / G13 -  CE

CLG-SF2310

 498 230 50 10 T8 / G13 -  CE

Accessories for lamps
Type Description
CONNECTIVITY
CVL01-200 2000 mm
CVL01A-30 300 mm
MOUNTING MAGNETIC
CLG-TSM1 -

LED lamps


Świetlówki LED


Typ Length
[mm]		 Frequency
[Hz]		 Power
[W]		 Colour temperature
[K]		 Brightness
[lm]		 Certifications

TL-237-45PT

 450 50/60  7.0 4,2 500 CE

TL-237-45WT

 450 50/60  7.0 5 500 CE

TL-237-465WT

 450 50/60  7.0 6,5 500 CE

TL-239-65WX

 600 50/60  9.0 5 800 CE

TL-239-665WX

 600 50/60  9.0 6,5 800 CE

TL-239-6PT

 600 50/60  9.0 4,2 800 CE

TL-2314-965WT

 900 50/60  14 5 1,4 CE

TL-2314-9PT

 900 50/60  14 4,2 1,4 CE

TL-2315-105WT

 970 50/60  15 5 1,4 CE

TL-2318-125WT

 1,2 50/60  18 5 1,6 CE

TL-2318-1265WX

 1,2 50/60  18 6,5 1,6 CE

TL-2318-12PT

 1,2 50/60  18 5 1,6 CE

TL-2322-155WT

 1,5 50/60  22 5 2,1 CE

TL-2322-15PT

 1,5 50/60  22 4,2 2,1 CE

LL-238-665WO

 570 50/60 8 6,5 450 ± 30 CE

LL-2312-965WO

 870 50/60 12 6,5 650 ± 30 CE

LL-2316-125WO

 1,17 50/60 16 5 870 ± 30 CE

LL-2316-125WT

 1,17 50/60 16 5 1,100 ± 30 CE
