Fabricante: Deeter Electronics Ltd

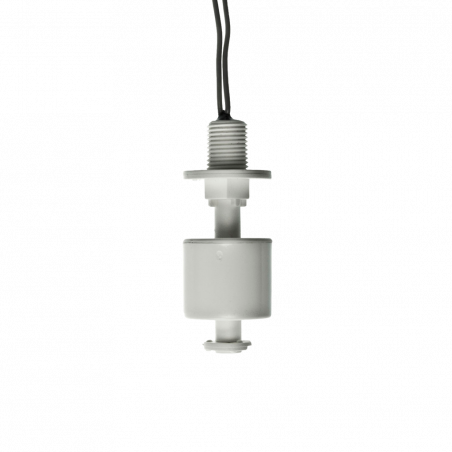

Sensor de nivelación 20 vertical, miniatura.

Series 20 level sensors are miniature vertical float sensors designed for low cost applications. Mainly intended for OEM customers. Small dimensions allow for use in small tanks and devices with limited space.

Mechanical:

  • Designed for low-cost OEM applications with serial demand
  • High-quality reed switches with 5 x 107 switching contacts
  • Available in UL / WRC listed PVC, Polypropylene, Acetal and Nylon
  • Changing the operation of NO to NC by turning the float

Electric:

  • Type A switch, max. Load 1W
  • Max. Operating voltage 24V DC
  • Maximum breaking current 0.1A
  • Minimum breakdown voltage 150V DC.
  • 7 / 0.2mm PVC cable, Acetal made PTFE cable
