Luz

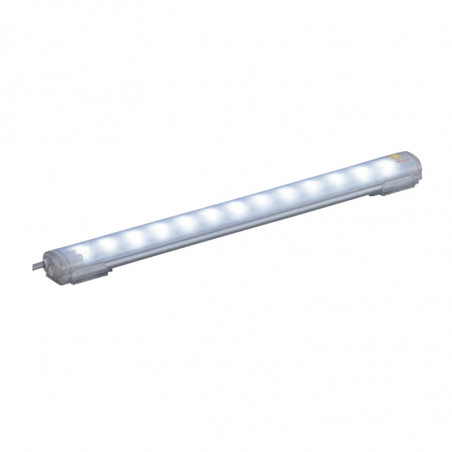

CLT3024S/EX LED Light Bar CLT

Application:

  • Explosion-safe for Gas and Dust
  • Suitable for Zone 2 and Zone 22
  • CE Compliant in accordance to ATEX
  • Voltage rating of 24 V DC at 416mA
  • Temperature range of -30℃ to +60℃
  • Protection rating of IP67
  • 350mm in length
  • Luminous intensity (at 50cm) of 500 lux
  • Lens material made of tempered glass
  • Body material made of aluminum alloy


CLT3024S/EXN


  II 3 GD; Ex nA II T4; Ex tD A22 T135°C 94/9/EC CENELEC: EN60079-15, EN60079-0, EN61241-1, EN61241-0


CLA/EX Intrinsically-safe CLA Series


Application:
  • Explosion-safe for Gas and Dust
  • Suitable for Zone 2 and Zone 22
  • CE Compliant in accordance to ATEX
  • Voltage rating of 24V DC (polarized)
  • Temperature range of -40℃ to +60℃
  • Protection ratings of IP66, IP67 and IP69k
  • Three different lengths to select among 100mm, 200mm and 300mm
  • Luminous intensity (at 50cm) for the 100mm at 140 lux; 200mm at 270 lux; 300mm at 400 lux
  • Body and lens material all made of polycarbonate
CLA/EXN

  IIC T4, Ex T135°C 94/9/EC CENELEC: 11, 0 II 3 GD; Ex nL iD A22 EN60079-15, EN61241-EN61241-
Menos
