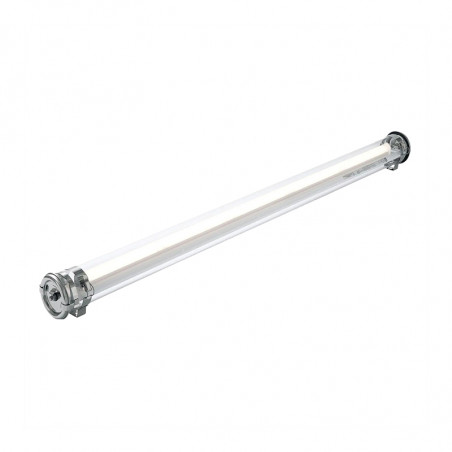

BOYLE 100 Luminaria
  • BOYLE 100 Luminaria

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Sammode

BOYLE 100 Luminaria

luminaire BOYLE 100

Characteristic

LED technology
Low in maintenance Instantaneous full light output on ignition over the entire temperature range of use Designed for repeated switching on and off

Tubular
Increased mechanical resistance. Easy to clean. Limited dirt accumulation. Orientation 360o.

Impervious
(IP68/IP69K) Absolute imperviousness No internal dust accumulation Maximum light output Adapted for pressure cleaning

Robust
Mechanical assembly insensitive to external mechanical and/or chemical aggressio

Basic parameters
Electrical class: I
Fire resistance: Coex. polycarbonate/PMMA (650oC), Borosilicate glass (non-flammable)
Protecion: IP 68/69K
Shock resistance: IK10 (polycarbonate), IK07 (Borosilicat glass).
Operationg temperature: -20oC do +40oC
II 3G Ex nA IIC T4 Gc, II 2D Ex tb IIIC T80oC Db

Housing
Ø100 mm diffuser in borosilicate glass for corrosive environments
Also available in coextruded polycarbonate/PMMA for chemically aggressive environments and outdoor lighting
End caps 1/2 ring press-formed in 304L stainless steel (316L also available
Gaskets moulded in EPDM
Cable entry with cable gland
Possibility for a model with 2 cable entries for looping-in (2 cable glands with stopper plug or 1 cable gland and 1 blind plug at the same cap)

Układ zasilania z diodą LED
• Gear tray in white powder coated steel
• Light mixing chamber
• Aluminium heat sink
• Optical diffuser
• High-efficiency LED moduls (145 lm/W)

  • Service life: 50,000 hours L80/B50
  • Colour temperature: 3000 K or 4000 K
  • CRI > 80

•  Integrated LED-Driver 220-240V 50/60Hz with constant current output

Dimensions



Main references

Powr Flux
(Im)

Designation

 Code Optics Colour temperature
[K]		 L
[mm]		 Weight
[kg]
VERSIONS WITH BOROSILICATE GLASS HOUSING
    Equivalent to 1x36W T8
24W 2775

BOYIOO 13H830 PY 113

1983 0050

 3000 1007 4,9
24W 2775

BOYIOO 13H840 PY 113

1983 0060

 4000 1007 4,9
    Equivalent to 1x58W T8
40W 4625

BOY100 15H830 PY 113

1983 0070

 3000 1607 7,6
40W 4625

BOY100 15H840 PY 113

1983 0080

 4000 1607 7,6
VERSIONS WITH COEXTRUDED POLYCARBONATE / PMMA HOUSING
    Equivalent to 1x36W T8
24W 2775

BOY100 13H830 POME 113

1983 0090

 3000 1007 3,0
24W 2775

BOY100 13H840 POME 113

1983 0100

 4000 1007 3,0
    Equivalent au 1x58W T8
40W 4625

BOY100 15H830 POME 113

19830110

 3000 1607 4,3
40W 4625

BOY100 15H840 POME 113

1983 0120

 4000 1607 4,3

Options

Description

 Option code
Cable entries
1 or 2 cable glands in black polyamide
Cable: Ø: 8-13 mm 113/213
Cable: Ø: 10-15 mm 116/216
Dławnica kablowa z czarnego poliamidu i 1 zaślepka Ø20 mm
Cable: Ø: 8-13 mm 113-1B
Cable: Ø: 10-15 mm 116-1B
1 lub 2 dławnice kablowe z niklowanego mosiądzu
Cable: Ø : 5-14 mm 113LN/213LN
Accessoires
5-point terminal block for phase balancing C5P C5P

Description

 Option code
Finishings
End caps and fixing straps in 316L stainless steel MR
Fixings
Reinforced bolt-fitted fixing straps with HSHC screw* BRV
Accessoires
Protective covers
Fixing for columns
