Fabricante: EXEPD

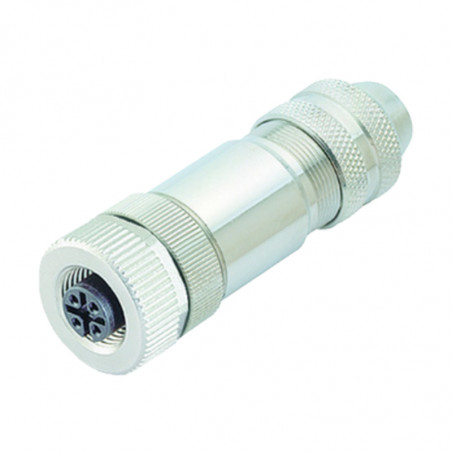

Conectores de control M12

M12 Connection element

Technical Data:
Material: nickel plated
Protection: max. IP 66/67
Type of protection : II 1 G Ex ia IIC T6 Ga
CE Declatation AV1-il-C0001
Ambient temp.: -40oC ÷ +80oC
Connection thread M12x1
Contact material: gold plated
Connection plug: max. 0,75mm2
Screw type for cable 4-6mm lub 6-8mm.


Dimensions

Coupler

Flange plug

 1. brown
2. white
3. blue
4 black

Plug

Flange socket

 1. brown
2. white
3. blue
4 black

Applications:
a) Plug / Coupler b)Single connection box with one flange socket

Table 1 connectors mounted cable

Picture Art. No Describtion Code Connection Diameter
500001* Coupler 4 - pole A M12x1 Ø6-8
500002* Coupler 4 - pole A M12x1 Ø4-6
500003* Coupler 4 - pole B M12x1 Ø4-6
500004* Coupler 4 - pole B M12x1 Ø6-8
500005* Coupler 4 - pole D M12x1 Ø6-8
500006* Coupler 4 - pole D M12x1 Ø4-6
500007* Socket 4 - pole A M12x1 Ø4-6
500008* Socket 4 - pole A M12x1 Ø6-8
500009* Socket 4 - pole B M12x1 Ø6-8
500010* Socket 4 - pole B M12x1 Ø4-6
500011* Socket 4 - pole D M12x1 Ø4-6
500012* Socket 4 - pole D M12x1 Ø6-8

Table 2 connectors mounted on the panel


Picture Art. No Describtion Code Connection Diameter
500013* Flange socket 4-pol
wire lenght 0,5m		 A M12x1 M16x1,5
500014* Flange socket 4-pol
wire lenght 0,5m		 B M12x1 M16x1,5
500015* Flange socket 4-pol
wire lenght 0,5m		 D M12x1 M16x1,5
500016* Socket 4 -pola
wire lenght 0,5m		 A M12x1 M16x1,5
500017* Socket 4 -pola
wire lenght 0,5m		 B M12x1 M16x1,5
500018* Socket 4 -pola
wire lenght 0,5m		 D M12x1 M16x1,5

Table 3

Picture Art. No Describtion
500019* Protection cab for flange plug
500016, 500017, 500018
500020* Protection cab for flange socket
500013, 500014, 500015
500021* Protection cab for plug
500007÷500012
500022* Protection cab for coupler
500001÷500006
