SILIGAINE® 16F3 -30 °C a +155 °C Clase F

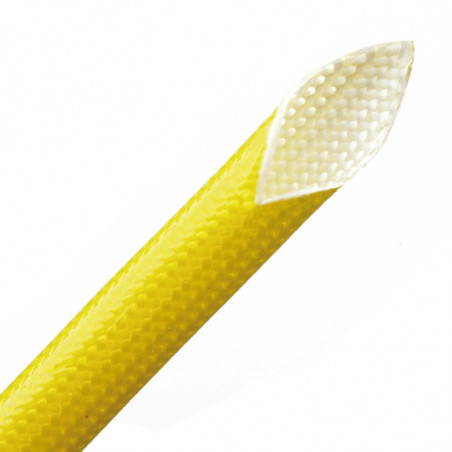

16F3 - fibreglass braided sleeving with acrylic coating

General characteristics

• continuous operating temperature: -30°C do +155°C
• good resistance to humidity and common chemical environments
• compatible with most impregnation varnishes class F
• flame retardant as per standard UL 1441
• very good flexibility
• halogen-free
• dielectric strength (dry):
  central value: 3.3 kV
  lowest value: 2.5 kV

Standard products

• colour: yellow

Packaging

• diameters from 0,5 to 4,5 mm – 200 m rolls
• diameters from 5 to 13 mm – 100 m rolls
• diameters from 14 to 22 mm – 50 m rolls
• diameters 25 mm – 25 m rolls

Standards*

• IEC 60684-1 and 60684-2
• IEC 60684-3 part 403
• VERITAS approval certificate No. 153626
• UL approval, category UZKX2: meets the requirements of the horizontal flame test File no.: E310331

(*) Our products comply with all or part of the requirements of standards quoted; contact us.

Applications

• internal cabling for rotating and static machines, classes b and f (motors, alternators, generators, transformers, inductors, etc.)
• sheathing of cable harnesses, all insulations classes B and F

Options

• other diameters: contact us
• other colours: contact us
• sleevings cut to length: contact us
