SILIGAINE® 16F7 UL -30 °C a +155 °C Clase F

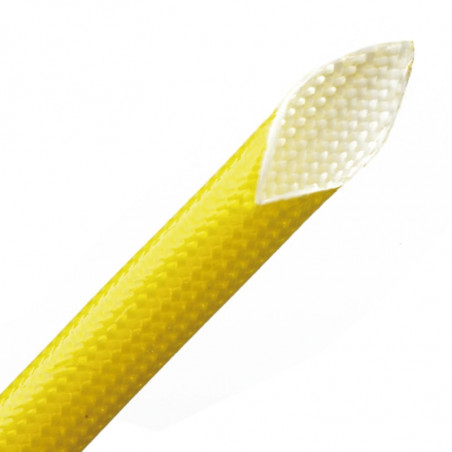

16F7 UL - fibreglass braided sleeving with acrylic coating

General characteristics

• continuous operating temperature: -30°C do +155°C
• good resistance to humidity and common chemical environments
• compatible with most impregnation varnishes class F
• flame retardant as per standard UL 1441
• grade A as per UL 1441
• very good flexibility
• halogen-free
• dielectric strength (dry):
  central value: 7 kV
  lowest value: 5 kV

Standard products

• colour: yellow

Packaging

• diameters from 0,5 to 1,5 mm – 200 m rolls
• diameters from 2 to 4.5 mm – 100 m rolls
• diameters from 5 to 16 mm – 50 m rolls

Standards*

• IEC 60684-1 and 60684-2
• IEC 60684-3 part 403
• UL approval 1441, category UZFT2 and CSA C22.2 no. 198.3, category UZFT8: Grade A acrylic coated fiberglass sleeving File no.: E179383

(*) Our products comply with all or part of the requirements of standards quoted; contact us.

Applications

• internal cabling for rotating and static machines, classes b and f (motors, alternators, generators, transformers, inductors, etc.)
• sheathing of cable harnesses, all insulations classes B and F

Options

• other diameters: contact us
• other colours: contact us
• sleevings cut to length: contact us
