Válvulas controladas manuales
  • Válvulas controladas manuales

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: AirTAC

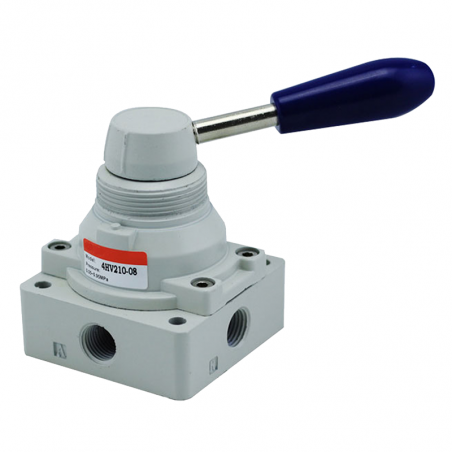

Válvulas controladas manuales

- Manual valve, precise, reliable, easy to use.
- Excellent leak tightness, small dimensions, small weight, easy to maintenance.
- Small friction. Start at low pressure, high resistance.
- Doesn't require lubrication.
- Arbitrary assembly position.

Series 4H 3L 4L 4HV 4HVL
Medium Air
Control Direct reaction
Terminal 1/8"  1/4" 1/8"  1/4"  3/8" 1/8"  1/4"  3/8"  1/2"  3/4"
Type 5/2(3) 3/2 5/2 4/2 i 4/3
Temperature°C -20 do +70
Lubrication N/A
Operation pressure 0~8.0bar (0~0.8MPa) (0~114psi) 0~10.0bar (0~0.1MPa) (0~145psi)
Max pressure 12.0bar (1.2MPa) (170psi) 15.0bar (1.5MPa) (215psi)
