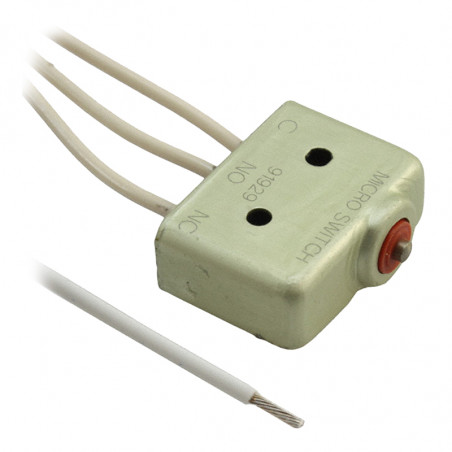

microinterruptores de la serie SE

SE and XE switches are the smallest environment-sealed switches offered by MICRO SWITCH. Both types enclose basic switches within a corrosion resistant aluminum housing to seal precision switch contacts from contamination. SE switches include a SM basic switch, and XE switches include the smaller SX basic switch.

Technical data

  • max. operation temperature: 105°C
  • current load: 5A
  • different lever types

Type Contact parameters Charasteristics Preferences Cable lenght
[cm]
O.F.
[N]		 R.F. min
[N]		 P.T. max
[mm]		 O.T. min
[mm]		 D.T.max
[mm]		 O.P.
[mm]
1SE1 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Most of applications 30
5SE1 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 30
5SE1-3 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 90
5SE1-6 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 180
5SE1-12 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 360

Dimensions [inches]

O.F. - Operating Force
R.F. - Release Force
P.T. - Pretravel
O.T. - Overtravel
D.T. - Diferential travel
O.P. - Operating Position
F.P. - Free Position

MIKROWYŁĄCZNIKI SERII SE wymiary

Levers

Type Lever type Lenght
[mm]		 Characteristic
O.F.
[N]		 R.F. min
[N]		 P.T. max
[mm]		 O.T. min
[mm]		 D.T.max
[mm]		 O.P.
[mm]		 F.P.
[mm]
JE1 Straight 16,8 3,34 0,56 3,81 0,38 0,64 11,2 15± 0,76
JE5 With roller 14,2 3,34 0,56 3,81 0,38 0,64 11,2 20,1± 0,76
JE12 Straight 26,1 3,34 0,56 3,81 0,38 0,64 11,2 16,8± 0,76
