Fabricante: METCASE

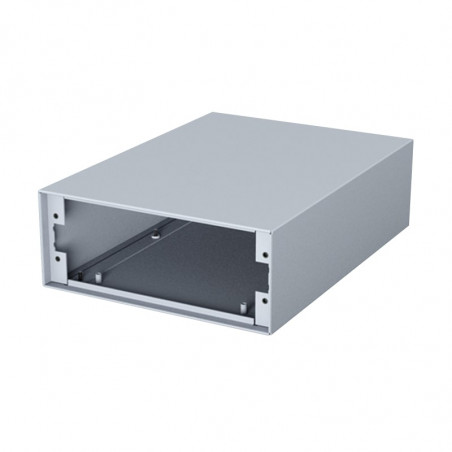

Vivienda de escritorio de minimet

Minimet Instrument Cases
Modern instrument cases, in eight compact sizes, for desktop and portable applications. Folded aluminium top and base panels are assembled by hidden fixing screws on the underside. Front and rear panel apertures are recessed by 8 mm and 14 mm at the opposite ends. Front and rear panels are ordered separately.

Opis
1)Top cover
2)Base Panel
3)M3 x 6 mm (x4/6)
4)M3 x 8 mm (x8)
5)Rubber foot (x4)
6)*Front/rear panel kit AN
7)*Front/rear panel PN
* Accessories
Standardowe kolory
Wymiary i rysunki Minimet
Minimet

Part No.VersionWDHAB
M 51 13 115 1 134.5 (5.29”) 130 (5.11”) 38.5 (1.51”) 72.5 (2.85”) 78 (3.07”)
M 51 13 125 2 134.5 (5.29”) 130 (5.11”) 70.0 (2.75”) 72.5 (2.85”) 78 (3.07”)
M 51 13 215 3 134.5 (5.29”) 200 (7.87”) 38.5 (1.51”) 72.5 (2.85”) 148 (5.82”)
M 51 13 225 4 134.5 (5.29”) 200 (7.87”) 70.0 (2.75”) 72.5 (2.85”) 148 (5.82”)
M 51 17 115 5 174.5 (6.87”) 160 (6.29”) 38.5 (1.51”) 112.5 (4.43”) 108 (4.25”)
M 51 17 125 6 174.5 (6.87”) 160 (6.29”) 70.0 (2.75”) 112.5 (4.43”) 108 (4.25”)
M 51 17 215 7 174.5 (6.87”) 240 (9.44”) 38.5 (1.51”) 112.5 (4.43”) 188 (7.40”)
M 51 17 225 8 174.5 (6.87”) 240 (9.44”) 70.0 (2.75”) 112.5 (4.43”) 188 (7.40”)






Front/Rear Panel Kit AN

Part No.VersionABCD
M 51 00 510 1 [&] 3 33.6 (1.32”) 129.5 (5.09”) 22.1 (0.87”) 118 (4.64”)
M 51 00 520 2 [&] 4 65.1 (2.56”) 129.5 (5.09”) 30.8 (1.21”) 118 (4.64”)
M 51 00 550 5 [&] 7 33.6 (1.32”) 169.5 (6.67”) 22.1 (0.87”) 158 (6.22”)
M 51 00 560 6 [&] 8 65.1 (2.56”) 169.5 (6.67”) 30.8 (1.21”) 158 (6.22”)

Front/Rear Panel PN

Part No.VersionABCD
M 51 00 515 1 [&] 3 33.6 (1.32”) 129.5 (5.09”) 22.1 (0.87”) 118 (4.64”)
M 51 00 525 2 [&] 4 65.1 (2.56”) 129.5 (5.09”) 30.8 (1.21”) 118 (4.64”)
M 51 00 555 5 [&] 7 33.6 (1.32”) 169.5 (6.67”) 22.1 (0.87”) 158 (6.22”)
M 51 00 565 6 [&] 8 65.1 (2.56”) 169.5 (6.67”) 30.8 (1.21”) 158 (6.22”)
