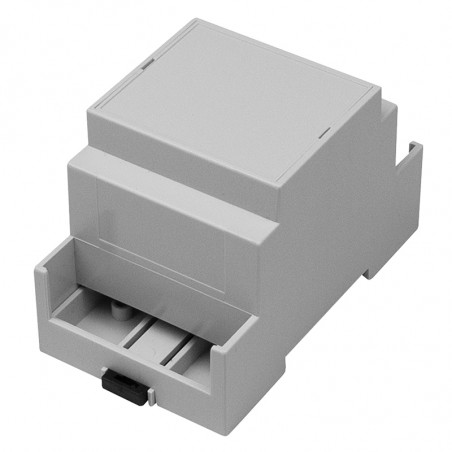

Caja de la serie CNMB modular DIN

parameters:

Model	Length	Horizontal PCB dimensions [mm]			Vertical PCB dimensions [mm]		PCB assembly holes [mm]
	[mm]	A	B	C	D	E	X	Y
CNMB/1-	17,5	86,5x14	57x14	41,8x14	34x59,6	40x14,8	6,2	18,3
CNMB/2-	36	86,5x33	57x32	42x32	34x59,6	40x33	6,2	18,3
CNMB/3-	53	86,5x50	57x49	42x49	34x59,6	40x50	8,8	18,3
CNMB/4-	71	86,5x68	57x67	42x67	34x59,6	40x68	8,8	18,3
CNMB/5-	88	86,5x84	57x83	42x83	34x59,6	40x84	8,8	18,3
CNMB/6-	106	86,5x103	57x102	42x102	34x59,6	40x103	8,9	18,3
CNMB/9-	159	86,5x156	57x155,5	42x155	34x59,6	40x155	8,9	18,3
CNMB/12-	212	86,5x208	57x207	57x207	34x59,6	40x208	8,9	18,3

CAUTION:
Casing consists of basis, cover and assembly element.Obudowa składa się z podstawy, góry oraz elementu
EXAMPLE:
CNMB/-/2 = place for terminals on both sides
CNMB/-/1 =place for terminals on one side

Options
- other colours: black, green and blue.
- EMC  protection

ST/ closed

V/ with ventilation holes

W/ lengthen walls

Vertical PCB assembly

horizontal PCB assembly

Closed version

Model Version A [mm] D [mm] E [mm] CNMB/1/TGS closed 17,5 15 14,3 CNMB/2/TGS closed 35,5 29,9 13,8 CNMB/3/TGS closed 52,8 45,5 13,8 CNMB/4/TGS closed 70,6 59,9 13,8 CNMB/5/TGS closed 87,6 79,5 13,8

CNMB/ /TGS

perforated version raster 5,08 mm

Model Version poles A [mm] D [mm] E [mm] CNMB/1/TG508P perforated 3 17,5 15 14,3 CNMB/2/TG508P perforated 6 35,5 29,9 13,8 CNMB/3/TG508P perforated 9 52,8 45,5 13,8 CNMB/4/TG508P perforated 12 70,6 59,9 13,8 CNMB/5/TG508P perforated 15 87,6 79,5 13,8

CNMB/ /TG508P

Drilled version raster 5,08 mm

Model Version poles A mm] D [mm] E [mm] CNMB/1/TG508 Drilled 3 17,5 15 14,3 CNMB/2/TG508 Drilled 6 35,5 29,9 13,8 CNMB/3/TG508 Drilled 9 52,8 45,5 13,8 CNMB/4/TG508 Drilled 12 70,6 59,9 13,8 CNMB/5/TG508 Drilled 15 87,6 79,5 13,8

CNMB/ /TG508

Version Drilled raster 7,5 mm

Model Version Poles A mm] D [mm] E [mm] CNMB/1/TG508 Drilled 3 17,5 15 14,3 CNMB/2/TG508 Drilled 6 35,5 29,9 13,8 CNMB/3/TG508 Drilled 9 52,8 45,5 13,8 CNMB/4/TG508 Drilled 12 70,6 59,9 13,8 CNMB/5/TG508 Drilled 15 87,6 79,5 13,8

CNMB/ /TG508

Version Drilled raster 10,16 mm

Model Poles A [mm] D [mm] E [mm] Version CNMB/1/TG100 Drilled 3 17,5 15 14,3 CNMB/2/TG100 Drilled 6 35,5 29,9 13,8 CNMB/3/TG100 Drilled 9 52,8 45,5 13,8 CNMB/4/TG100 Drilled 12 70,6 59,9 13,8 CNMB/5/TG100 Drilled 15 87,6 79,5 13,8

CNMB/ /TG100



Features: - height 16 mm - extra slot for PCB

Model width [mm] CNMB/2/E 34,7 CNMB/3/E 52 CNMB/4/E 70 CNMB/5/E 86,5 CNMB/6/E 104,5 CNMB/9/E 157,7

Flat version

Oval version

Model version CNMB/1/PR Transparent red płaska CNMB/2/PR Transparent red płaska CNMB/3/PR Transparent red płaska CNMB/4/PR Transparent red płaska CNMB/5/PR Transparent red płaska CNMB/6/PR Transparent red płaska CNMB/9/PR Transparent red płaska CNMB/12/PR Transparent red płaska CNMB/1/PS Transparent mat płaska CNMB/2/PS Transparent mat płaska CNMB/3/PS Transparent mat płaska CNMB/4/PS Transparent mat płaska CNMB/5/PS Transparent mat płaska CNMB/6/PS Transparent mat płaska CNMB/9PS Transparent mat płaska CNMB/12/PS Transparent mat płaska CNMB/1/PC Transparent clean płaska CNMB/2/PC Transparent clean płaska CNMB/3/PC Transparent clean płaska CNMB/4/PC Transparent clean płaska CNMB/5/PC Transparent clean płaska CNMB/6/PC Transparent clean płaska CNMB/9/PC Transparent clean płaska CNMB/12/PC Transparent clean płaska CNMB/1/PG Płaska grey CNMB/2/PG Płaska grey CNMB/3/PG Płaska grey CNMB/4/PG Płaska grey CNMB/5/PG Płaska grey CNMB/6/PG Płaska grey CNMB/9/PG Płaska grey CNMB/12/PG Płaska grey

Model version CNMB/1/PRC Transparent red oval CNMB/2/PRC Transparent red oval CNMB/3/PRC Transparent red oval CNMB/4/PRC Transparent red oval CNMB/5/PRC Transparent red oval CNMB/6/PRC Transparent red oval CNMB/9/PRC Transparent red oval CNMB/1/PSC Transparent clean oval CNMB/2/PSC Transparent clean oval CNMB/3/PSC Transparent clean oval CNMB/4/PSC Transparent clean oval CNMB/5/PSC Transparent clean oval CNMB/6/PSC Transparent clean oval CNMB/9/PSC Transparent clean oval CNMB/1/PGC oval grey CNMB/2/PGC oval grey CNMB/3/PGC oval grey CNMB/4/PGC oval grey CNMB/5/PGC oval grey CNMB/6/PGC oval grey CNMB/9/PGC oval grey

Version oval with hinges

Model Version CNMB/2/HPCC Transparent clean oval with hinges CNMB/3/HPCC Transparent clean oval with hinges CNMB/4/HPCC Transparent clean oval with hinges CNMB/5/HPCC Transparent clean oval with hinges CNMB/6/HPCC Transparent clean oval with hinges CNMB/9/HPCC Transparent clean oval with hinges CNMB/2/HPRC Transparent red oval with hinges CNMB/3/HPRC Transparent red oval with hinges CNMB/4/HPRC Transparent red oval with hinges CNMB/5/HPRC Transparent red oval with hinges CNMB/6/HPRC Transparent red oval with hinges CNMB/9/HPRC Transparent red oval with hinges CNMB/2/HPGC oval grey with hinges CNMB/3/HPGC oval grey with hinges CNMB/4/HPGC oval grey with hinges CNMB/5/HPGC oval grey with hinges CNMB/6/HPGC oval grey with hinges CNMB/9/HPGC oval grey with hinges

Adnotacja: Możliwość zakupu oddzielnych części do konfiguracji obudowy (moduł powiększający, lite osłony, pokrywy skrzynki modułu, osłony końcówek etc.)
