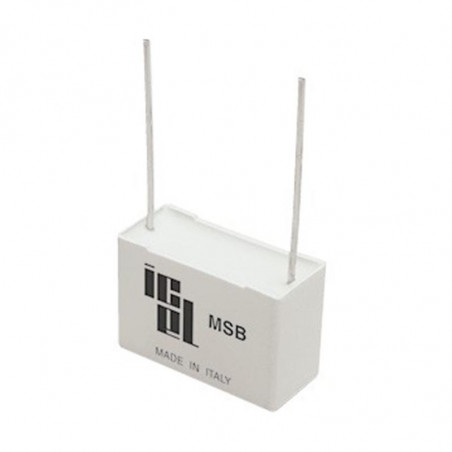

Capacitores de poliéster MSB
  • Capacitores de poliéster MSB

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Icel

Capacitores de poliéster MSB

Main Application

  • Blocking, filtering, bypassing, timing, coupling, decoupling,
  • general applications in electronics
  • Low AC voltage motor running
  • Low power switching applications
  • Low pulse operation

Execution and Reference Standard

  • Extended metallized film
  • Internal series connection for Ur≥1000Vdc.
  • Box with radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/2, IEC 60068, RoHS



MSB Ur Cn (μF) du/dt (V/μs) Nom. size B (mm) x H (mm) x L (mm) Pitch (mm)
63 Vdc (40 Vac) 0.68 ÷ 120 4 ÷ 7 5x11x18 ÷ 35x50x42 15 ÷ 37.5
100 Vdc (63 Vac) 0.33 ÷ 100 4 ÷ 9 5x11x18 ÷ 35x50x42 15 ÷ 37.5
160 Vdc (90 Vac) 0.33 ÷ 56 5 ÷ 12 5x11x18 ÷ 35x50x42 15 ÷ 37.5
250 Vdc (160 Vac) 0.1 ÷ 40 6.5 ÷ 18 5x11x18 ÷ 35x50x42 15 ÷ 37.5
400 Vdc (200 Vac) 0.047 ÷ 15 10 ÷ 25 5x11x18 ÷ 35x50x42 15 ÷ 37.5
630 Vdc (220 Vac) 0.033 ÷ 6.8 14 ÷ 35 5x11x18 ÷ 35x50x42 15 ÷ 37.5
1000 Vdc (400 Vac) 0.01 ÷ 4.7 20 ÷ 40 5x11x18 ÷ 35x50x42 15 ÷ 37.5


Product Card - download
