Analizador de red multifuncional Q96D4
  • Analizador de red multifuncional Q96D4

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: FRER

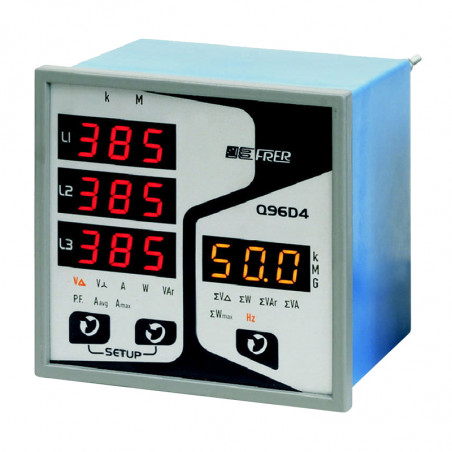

Analizador de red multifuncional Q96D4

Multifunction network analyser, suitable for three-phase three or four wires systems with unbalanced load, even with distorted waveforms. It allows the visualization of all the main characteristic variables of an electric network (11 variables, 30 measures) on a single unit, greatly reducing the complexity and the costs of installation.

These multifunction power analyzers have 3 Led displays on which appear the values rele-vant to the 3 phases (phase variables), plus an additional one, with a different colour, to display the system variables (sum or average of the phases variables according to the type).
The choice of the displayed measurements is indepent for each of the two sections (phase or system variables), allowing a better supervision of the network status.
The indications of the measurement type which is currently displayed and of the kilo or Mega multiplier are implemented by lighted symbols of easy and immediate identification.



Technical data

LED displays 3 (h. 10mm)
Decimal point position Automatic
LED Status Lighted symbols
Readings 1 sec
Measuring type TRMS
Basic accuracy 1%
Nominal input voltage Un 100-400V
Nominal input current In 1-5A;
Input range 10-120% Un, 5-120% In
Operating frequency 45…65Hz
Continuous overload 2xIn; 1,2xUn
Short-term overload 20 x In; 2 x Un (300 msec.)
current circuits consumption < 0.5VA
voltage circuits consumption < 0.5VA
Power supply 115, 230V (45...65Hz) ±10%
Power consumption 6VA
Operating temperature -10……+23……+50°C
Storage temperature -30…+70°C
Thermoplastic material UL 94V0

Dimensions

Wielofunkcyjny analizator sieci Q96D4 wymiar
