Fabricante: KRADEX

Carcasas herméticas de la serie ZP PolyCarbonate.

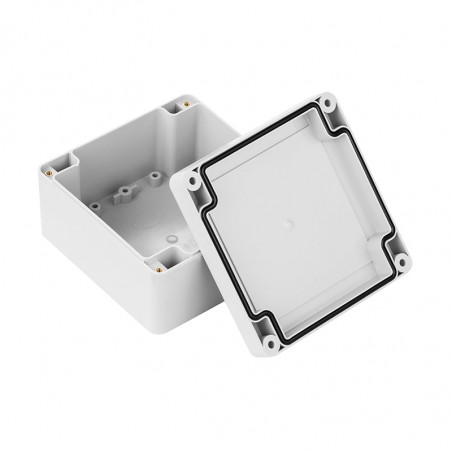

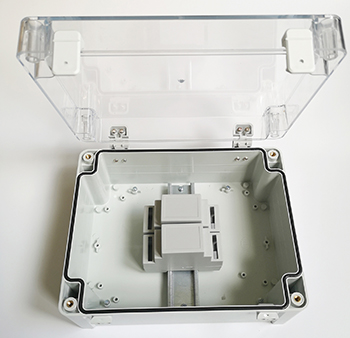

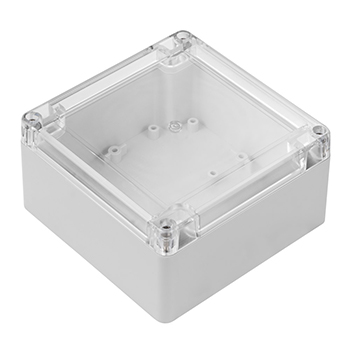

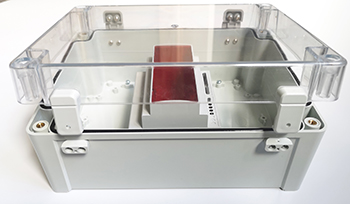

Hermetic enclosures ZP series are suitable for all equipment where it is necessary to be hermetically sealed. Mounting pads in the enclosure allow for a secure mounting of the DIN rail inside the enclosure. Versions with ABS and PC are available. The cover can be made of transparent polycarbonate. Both parts of the enclosure are fastened with captive screws.

Standard screws, captive screws, bushings, hinges and wall mount handles are additional accessories, available at an additional cost.



/th>
Product no. Material Type Dimensions [mm] Colour Protection level Property class Accessories
LxWxH
ZP105.105.60 ABS / PC With cast gasket and brass bushing (-IP67 TM) 105x105x60 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Mounting board: ZMB105.105: 1.0 pcs
Rail: TZ35.76: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0
Bolt: M3/20: 4.0 pcs
ZP105.105.75 ABS / PC Hermetyczna (z uszczelką) (H)
Hermetyczna z tulejkami mosiężnymi (H TM)
105x105x75 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Mounting board: ZMB105.105: 1.0 pcs
Rail: TZ35.76: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0
Bolt: M3/20: 4.0 pcs
ZP120.120.60 ABS / PC With cast gasket and brass bushing (-IP67 TM) 120x120x60 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Mounting board: ZMB120.120: 1.0 pcs
Rail: TZ35.93: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP120.80.45 ABS / PC With cast gasket and brass bushing (-IP67 TM) 120x80x45 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.93: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP120.80.60 ABS / PC With cast gasket and brass bushing (-IP67 TM) 120x80x60 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.93: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP120.80.75 ABS / PC With cast gasket and brass bushing (-IP67 TM) 120x80x75 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.93: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP135.135.60 ABS / PC With cast gasket and brass bushing (-IP67 TM) 135x135x60 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Mounting board: ZMB135.135: 1.0 pcs
Rail: TZ35.106: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP150.100.45 ABS / PC With cast gasket and brass bushing (-IP67 TM) 150x100x45 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.93: 1.0 pcs
Rail: TZ35.76: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP150.100.60 ABS / PC With cast gasket and brass bushing (-IP67 TM) 150x100x60 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.93: 1.0 pcs
Rail: TZ35.76: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Bolt: M3 / 20: 4.0 pcs
ZP150.100.75 ABS / PC With cast gasket and brass bushing (-IP67 TM) 150x100x75 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.93: 1.0 pcs
Rail: TZ35.76: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP150.150.60 ABS / PC With cast gasket and brass bushing (-IP67 TM) 150x150x60 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Mounting board: ZMB150.150: 1.0 pcs
Rail: TZ35.114: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Bolt: M3/20: 4.0 pcs
ZP180.120.90 ABS / PC With cast gasket and brass bushing (-IP67 TM) 180x120x90 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.93: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Bolt: M3/20: 4.0 pcs
Rail: TZ35.146: 1.0 pcs
ZP210.140.60 ABS / PC With cast gasket and brass bushing (-IP67 TM) 210x140x60 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Rail: TZ35.106: 1.0 pcs
Wall mounting: ZWM20 PC: 1.0 pcs
Płyta montażowa: ZMB210.140: 1.0 pcs
Bolt: M3/20: 4.0 pcs
Rail: TZ35.179: 1.0 pcs
ZP240.190.105 ABS / PC With cast gasket and brass bushing (-IP67 TM) 240x190x105 Lightgray (J)
Lightgray, transparent lid (Jp)
IP 65/ 67 IK 07 Wall mounting: ZWM10 PC: 1.0 pcs
Hinge: ZHINGE10 PC: 1.0 pcs
Mounting board: ZMB240.190: 1.0 pcs
Bolt: M3/20: 4.0 pcs
Rail: TZ35.146: 1.0 pcs
Rail: TZ35.201: 1.0 pcs


*You can modify the height of the cover or base in any type of housing.
