Fabricante: LUMEL

Medidores de frecuencia

APPLICATION

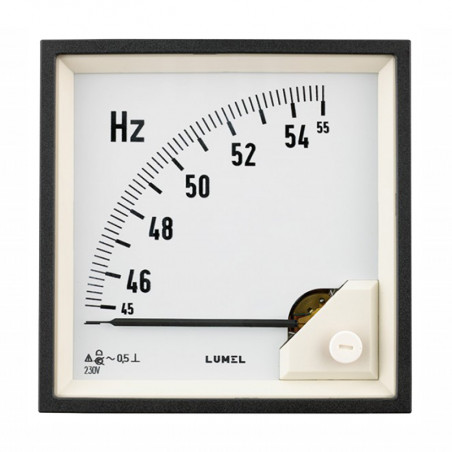

CA37, CA39 and CA32 pointer frequency meters are moving-coil meters with built-in measuring transducers intended for measuring voltage frequency in AC electrical networks.
These meters can be mounted on panels of any kind of materials.
We deliver together the meters:
- two screw holders to fix the meter on the panel,
- a terminal shroud (on request),
- a service manual.
BASIC REQUIREMENTS, USER`S SAFETY
CA series meters are destined to be installed on panels or switchboards.
They are in conformity with EN 61010-1 standard requirements.



TECHNICAL DATA

Measuring ranges and accuracy classes: table1
Measuring ranges Accuracy class
45... 55 Hz 0,5
45... 65 Hz 0,5
48... 52 Hz 0,2
55... 65 Hz 0,5
58... 62 Hz 0,2
140... 160 Hz 0,2
180... 220 Hz 0,2
360... 440 Hz 0,5
380... 420 Hz 0,2

Input voltages 60; 100; 110; 230; 400; 415; 440; 500 lub 690 V± 20%
Rated operating conditions
- ambient temperature 5...23...40°C
  5...35...55°C
- relative air humidity 25...85%
- working position acc. order (±5), Table 2
Power consumption ≤ 2 VA
Protection Grade acc. to EN60529
- front protection grade: IP50 for CA37, CA39 and CA32 meters
  IP54 for CA32 meters
  IP65 for C37 and C39 meters (on request)
IP65 for C37 and C39 meters (on request)
Electromagnetic compatibility:
- emission acc. EN 61000-6-4 standard
- mmunity acc. EN 61000-6-2 standard
Safety requirements wg PN-EN 61010-1+A1
- installation category III
- level of polution 2
Maximal working voltage in relation to the earth 600 V AC
Weight
– CA32 520 g
– CA37 300 g
– CA39 350 g
ACCESSORIES
We deliver with the meter:
- screw holders for IP 50 or IP 54 option 2 pcs
- screw holders for IP 65 option 4 pcs
- terminal protection cover 1 pcs
- user’s manual 1 pc

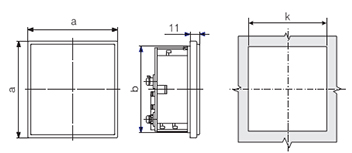

EXTERNAL DIMENSIONS OF CA37 AND CA39 METER FOR IP 65 PROTECTION GRADE
Panel pointer frequency meters Panel pointer frequency meters
Typ a b k

CA37

 81 70 70,2+0,7

CA39

 105 94 94,2+0,8



Panel pointer frequency meters


Typ a b c d e f g k
mm

CA37

 72 4 68-0,3 5 45 10..20 20,5 68+0,7

CA39

 96 4 92+0,3 5 45 10..20 32,5 92+0,8

CA32

 144 4,5 137,3-0,5 6 48 10... 20 55,5 138+10


Example of order
Code: CA37-1-4-O-00-8, means:
The version of a frequency meter, CA37 type in a 72  72 mm case, for the frequency range: 45...55 Hz, rated voltage: 230 V, working position: c3 (90°- vertical), standard version, without additional requirements.

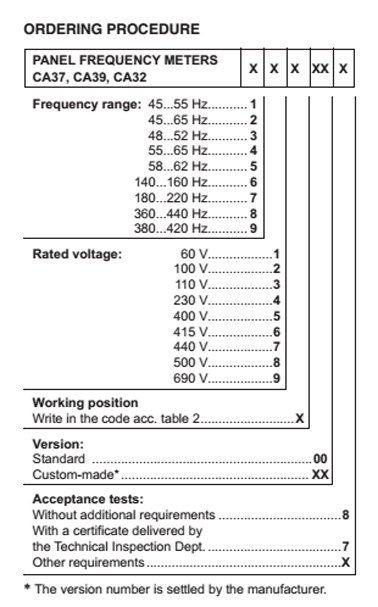

ORDERING PROCEDURE
Panel pointer frequency meters
Code Working position
0 c3
A  c1
B  c2 α = 15°
C  c2 α = 30°
D  c2 α = 45°
E  c2 α = 60°
F  c2 α = 75°
H  c4 α = 105°
I  c4 α = 120°

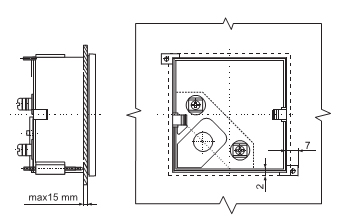

INSTALLATION



Panel pointer frequency meters
