Fabricante: Partex Marking Systems

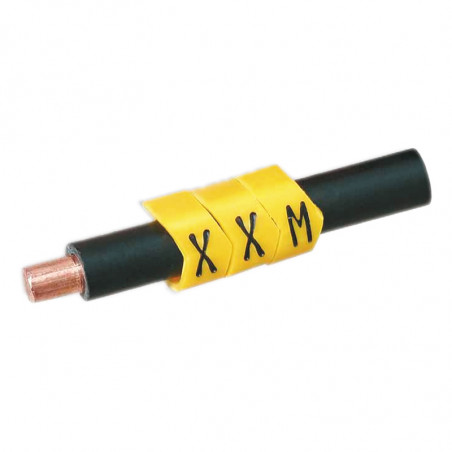

PC - sin ambiguos con un perfil abierto

- Open section tags for connected wires.
- Holds tight to cable because of strong snap fasteners.
- Special shape makes, that single character sequence stays in single line.
- Easy to snap on the cable


Properties
Operation temperature :  -30°C do +60°C
Material:  pcv non burning, self extinguishing
  according to ul94-vo
Overprint :  pressed with heat


Dimensions

Type
  [mm]		 height h
[mm]		 Width b
[mm]		 Text height [mm]
PC-10 3.6 3.7 2.6
PC-20 4.2 4.5 2.6
PC-30 5.5 5.7 2.6
PC-40 6.5 6.9 4.0


Dimensions and packing
Type For wires Length Character quantity Package
PC-10 -2.4 - 3.0 mm
-0.4 - 1.5 mm2		 3 mm 1 package 200 pce. - bundle
PC-20 -3.0 - 4.0 mm
-1.5 - 3.0 mm2		 3 mm 1 package 200 pce. - bundle
PC-30 -4.0 - 5.0 mm
-3.0 - 4.0 mm2		 3 mm 1 package 200 pce. - bundle
PC-40 -5.0 - 6.2 mm
-4.0 - 5.0 mm2		 4 mm 1 package 200 pce. - bundle
Standard colour: yellow      Overprint: 0-9, A-Z, + - / . :
Digits are also in universal colour code.


Application
