PMS - Capacitores de polipropileno
  • PMS - Capacitores de polipropileno

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Icel

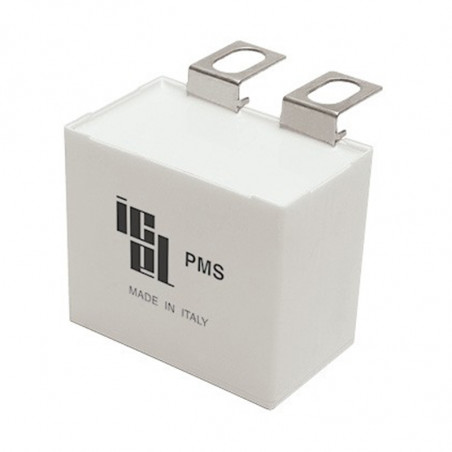

PMS - Capacitores de polipropileno

Main applications

  • Switching-Snubber capacitor for resonant circuits, industrial and motor speed controls, induction heaters
  • High frequency and high current applications


Execution and reference standard

  • Extended metallized film with internal series connection
  • Box with lug terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/16, IEC 60068, RoHS

PMS Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size D (mm) x L (mm)
550 Vdc (340 Vac) 2 ÷ 18.5 72 ÷ 110 13 ÷ 38 17x28x42.5 ÷ 38x57.5x57.5
700 Vdc (420 Vac) 1.5 ÷ 12 100 ÷ 150 15 ÷ 37 17x28x42.5 ÷ 38x57.5x57.5
850 Vdc (500 Vac) 1 ÷ 8 110 ÷ 200 14.5 ÷ 36.5 17x28x42.5 ÷ 38x57.5x57.5
1000 Vdc (575 Vac) 0.68 ÷ 6 135 ÷ 225 14 ÷ 36 17x28x42.5 ÷ 38x57.5x57.5
1200 Vdc (630 Vac) 0.47 ÷ 4.7 150 ÷ 255 12.5 ÷ 35.5 17x28x42.5 ÷ 38x57.5x57.5
1500 Vdc (650 Vac) 0.33 ÷ 3 175 ÷ 320 12 ÷ 34 17x28x42.5 ÷ 38x57.5x57.5
2000 Vdc (700 Vac) 0.22 ÷ 2 225 ÷ 410 11.5 ÷ 32 17x28x42.5 ÷ 38x57.5x57.5
2500 Vdc (725 Vac) 0.1 ÷ 1.2 280 ÷ 550 8 ÷ 29.5 17x28x42.5 ÷ 38x57.5x57.5
3000 Vdc (750 Vac) 0.068 ÷ 0.68 370 ÷ 750 8 ÷ 27 17x28x42.5 ÷ 38x57.5x57.5



Product Card - Download
