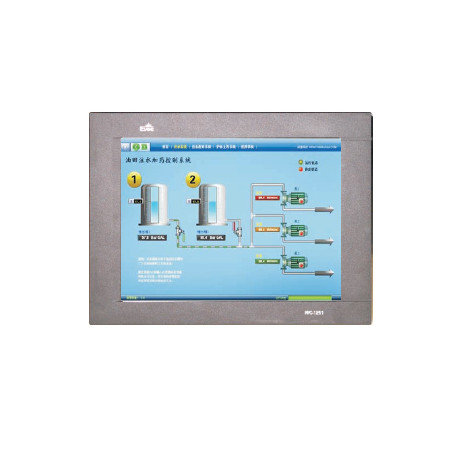

PPC-1251 / PPC-1252 Ordenador de panel industrial con monitor táctil 12 "/ LAN / VGA / AUDIO / 4USB
  • PPC-1251 / PPC-1252 Ordenador de panel industrial con monitor táctil 12 "/ LAN / VGA / AUDIO / 4USB

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

PPC-1251 / PPC-1252 Ordenador de panel industrial con monitor táctil 12 "/ LAN / VGA / AUDIO / 4USB / 3COM

Featuresa:
12” Extra-thin Fanless Panel PC
Inte® Celeron® M 600MHz processor
1GB DDRII in standard configuration, up to 2GB
Supports 4 USB2.0, 3 COM, 1 VGA ,1 LAN, 1 Audio, 1 PS/2 port (KB/MS)


Specifications

Display Features
Display Screen
12.1” Color TFT LCD
Display Chipset
Intel® 910GMLE/915GM integrated graphics acceleration controller
Resolution
800x600
Brightness
450cd/m2
Contrast ratio
≥350:1
Touch screen
 Resistance method
System:
SBC model procesor
Intel Celeron M 600MHz, ETX-1712CLDNA
Chipset
Intel 910GMLE/915GM+ICH6M
Memory
1GB DDRII in standard configuration, up to 2GB
Watchdog Timer
1-255 sec./min, timer system reset/interput
Storage
2.5" 160G SATA HDD in standard configuration; support CF Type II
Expansion Interface
 N/A
Ethernet:
Chipset
Intel 82562ET
Speed
10/100 Mbps
Connector
1 x RJ45
I/O Interface
USB
4 x USB 2.0
Serial Port
3 x RS-232
VGA
1 x VGA
KB/MS
1 x PS/2
Audio
AC'97, available interface of Speaker-out, Mic-in on the rear panel
Mechanical and Environmental
Dimensions
320 x 242 x 49 [mm]
Weight
4,4/602 Kg
IP Level(front panel)
IP65
Reliability
MTBF ≥ 50000h; ≤ 0,5h
Safety
GB4943
Operating Temperature
0 – 50 oC
Storage Temperature
-20 – 60 oC
Operating Humidity
10-95 %
Power:
Power Supply
100-240 VAC 50/60 Hz
Power consumption
96W (max)
Operating System
Windows OS
Windows 98SE/Windows XP/Windows 2000
Embedded OS
Linux/XP Embeded/WinCE
Test:
Vibration
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
Shock
10g peak acceleration(11ms duration)
EMC/EMI
GB9254-1998 class A


Optional Accessories
-Driver CD/Protective film/RoHS
Model Description
PPC-1251-0101/touchscreen 12.1"LCD/Intel®CM 600M/1GB DDR2 memory/160G SATA hard disk/1 x VGA port/1 x 10/100Mbps LAN port/4 x USB2.0 port/3 x RS-232/
1 x PS/2 port/one set of Audio ports/Single 12V DC power supply, with power adapter/aluminium alloy front panel/with touch screen
PPC-1251-0102/toughnet glass 12.1"LCD/Intel®CM 600M/1GB DDR2 memory/160G SATA hard disk/1 x VGA port/1 x 10/100Mbps LAN port/4 x USB2.0 port/3 x RS-232/
1 x PS/2 port/one set of Audio ports/Single 12V DC power supply, with power adapter/aluminium alloy front panel
PPC-1252-0101/touchscreen 12.1"LCD/Intel®CM 600M/1GB DDR2 memory/160G SATA hard disk/1 x VGA port/1 x 10/100Mbps LAN port/4 x USB2.0 port/3 x RS-232/
1 x PS/2 port/one set of Audio ports/Single 12V DC power supply, with power adapter/ metal plate-made front panel /with touch screen
PPC-1252-0102/toughnet glass 12.1"LCD/Intel®CM 600M/1GB DDR2 memory/160G SATA hard disk/1 x VGA port/1 x 10/100Mbps LAN port/4 x USB2.0 port/3 x RS-232/
1 x PS/2 port/one set of Audio ports/Single 12V DC power supply, with power adapter/ metal plate-made front panel
