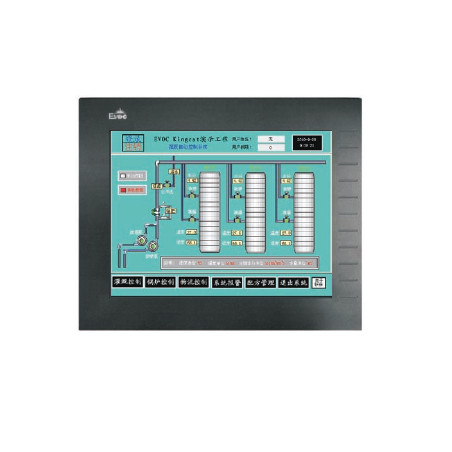

PPC-1521 / PPC-1522 Ordenador de panel industrial con un monitor táctil 15 "/ LAN / VGA / 4USB /
  • PPC-1521 / PPC-1522 Ordenador de panel industrial con un monitor táctil 15 "/ LAN / VGA / 4USB /

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

PPC-1521 / PPC-1522 Ordenador de panel industrial con un monitor táctil 15 "/ LAN / VGA / 4USB / 4COM

Features:
15” TFT LCD, touch screen available (optional)
Onboard Intel® CoreTM 2 Duo L2400
Standard configuration: 1G memory
Touch screen Supports 4 USB2.0, 4 COM, 1 VGA,1 LAN, 1 Audio, 1 PS/2 port (KB/MS)

PPC-1521/PPC-152 funkcje

Specifications:
Charakterystyka monitora:
Display Screen 15” colourTFT LCD
Display Chipset Intel 945GME integrated VGA connector+ dual display CRT+LVDS
Dual Display 1024x768
Resolution 350cd/m2
Contrast ratio 400:1
Touch Screen 5-wire resistive touch screen optional
System:
SBC model Processor Intel Core 2 Duo L2400, HPC-1811CLDNA-L2400
Chipset Intel 945GME+Intel ICH7M
Memory Standard configuration: 1G memory (DDRII/667MHz).
Provides two 200Pin DDRII400/533/667MHz SODIMM memory slots, up to 4GB
Watchdog Timer 1-255 sec./min, timer system reset/interput
Storage 1 x 160GB hard disk
Expansion Interface 2 x PCI
Ethernet:
Chipset RTL8111D-GR
Speed 10/100/1000 Mbps
Connector 1 x RJ45
I/O Interface
USB 4 x USB 2.0
Serial Port 4 x com (COM1/COM2 – RS232, COM3/COM – RS485
Parallel Port 1 x LPT
VGA 1 x VGA
KB/MS 1 x PS/2
Audio 1 x HD Onboard HD Audio,, MIC-in, LIN-in, speaker-out
Mechanical and Environmental
Dimensions 396 x 323 x 80 [mm]
Weight 6,7/10,5 Kg
IP Level(front panel) IP65
Reliability MTBF ≥ 50000h; ≤0,5h
Safety GB4943
Operating Temperature 0 – 50 oC
Storage Temperature -20 – 60 oC
Operating Humidity 10-95 %
Power:
Power Supply Module DC-DC and AC-DC
Power consumption 120W (max)
OS:
Windows OS Windows 98SE/Windows XP/Windows 2000
Test:
Vibration 5-17 Hz/0,1mm amplitude ; 17-200Hz/1.0g acceleration
Shock 11ms duratio
EMC/EMI GB9254-1998 class A
Noise ≤60 dB

Optional Accessories:
- Power adapter components/RoHS
- KM cable/RoHS
- CD/Protective film/RoHS


Model Description

PPC-1521-0101/touchscreen

15” LCD panel PC/aluminiowy panel frontowy/touchscreen

PPC-1521-0102/tempered glass

15” LCD panel PC /aluminiowy panel frontowy/szkło monitora hartowane

PPC-1522-0101/touchscreen

15” LCD panel PC /metalowy panel frontowy/touchscreen

PPC-1522-0102/tempered glass

115” LCD panel PC /metalowy panel frontowy/ szkło monitora hartowane
