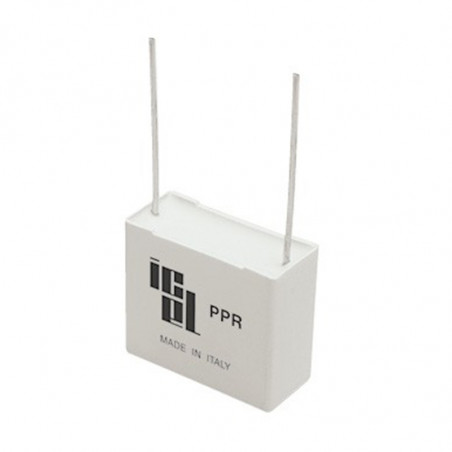

PPR - Capacitores de polipropileno
  • PPR - Capacitores de polipropileno

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Icel

PPR - Capacitores de polipropileno

Main applications

  • Snubber, SCR commutating circuits, electronic ballasts, protection circuits in SMPSs
  • High voltage, high current and high pulse operation up to very high operating frequencies


Execution and reference standard

  • Extended double side metallized carrier film
  • Internal series connection and metallized film for Ur≥630Vdc.
  • Box with radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/2, IEC 60068, RoHS
PPR Ur Cn (μF) du/dt (V/μs) Nom. size D (mm) x L (mm) Pitch (mm)
250 Vdc (175 Vac) 0.1 ÷ 20 105 ÷ 315 5x11x18 ÷ 35x50x42 15 ÷ 37.5
400 Vdc (230 Vac) 0.047 ÷ 10 160 ÷ 480 5x11x18 ÷ 35x50x42 15 ÷ 37.5
630 Vdc (400 Vac) 0.022 ÷ 4.7 450 ÷ 2500 5x11x18 ÷ 35x50x42 15 ÷ 37.5
1000 Vdc (600 Vac) 0.01 ÷ 2.2 500 ÷ 3300 5x11x18 ÷ 35x50x42 15 ÷ 37.5
1600 Vdc (650 Vac) 0.0033 ÷ 1.2 1200 ÷ 6000 5x11x18 ÷ 35x50x42 15 ÷ 37.5
2000 Vdc (700 Vac) 0.0022 ÷ 0.68 1500 ÷ 7000 5x11x18 ÷ 35x50x42 15 ÷ 37.5

Product Card - Download
