Fabricante: TEXA industries

6 TCWH2-Q0 82800 - Frenadores de la serie 150400

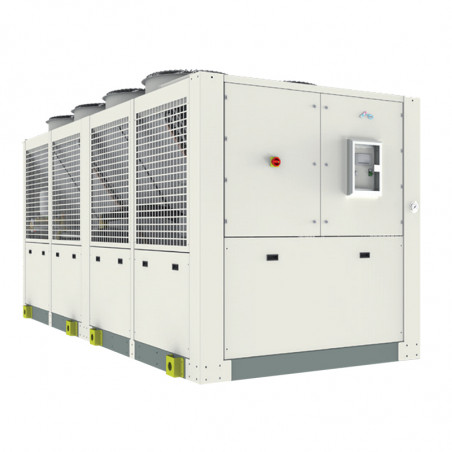

Coolers 6 TCW series 82800 - 150400 W


Coling power range 82800 - 150400 W
Casing: steel, covered with polyester, colour RAL 7035, casing is removable
Compressor Hermetically closed compressor with thermal protection
Cooling circuit Stub pipe for cooling liquid refill, filter , high pressure switch, cooling liquid R134a
Evaporator: Plate heat exchanger with icing protection.
Condenser: High efficient,spiral exchanger with ribs, protected with steel net
Axial fan Protected thermally and with metal net.
Hydraulic circuit : Consist of electric pump, plastic water container, valve, manometr 0-10 bar . Evaporator is protected with flow sensor
Temperature control: is done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions

Technical data


Type TCW H2 TCW I3 TCW M4 TCW O1 TCW Q0
Nominal cooling power [W] 82800 92200 113200 131200 150400
Ambient temperature [oC] +10 - + 45
Water temperature [oC] +8 - + 25
Cooling liquid R410A
Power supply [V/Hz] 400 V  3f / 50
Power [kW] 36,8 40,6 47,4 54,6 61,4
Pumps :
water flow [l/min] 230/400 260/400 320/400 370/800 430/800
water pressure [bar] 3 2,9 2,9 2,9 2,7
Container capacity [l] 500
Water terminal [mm] 2,5’’
Weight[kg] 1500 1650 1650 1800 1800
