Fabricante: TEXA industries

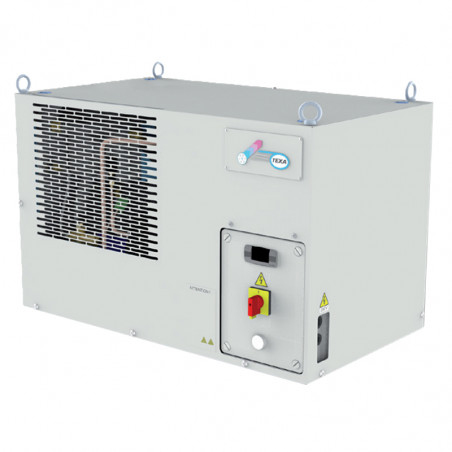

Enfriadores, enfriadores para la serie de agua de enfriamiento 4 TCW

Cooling power range
23000 - 37600 W
Casing :
steel, covered with polyester, colour RAL 7035, casing is removable
Compressor:
Hermetically closed compressor with thermal protection and oil level indicator
Cooling circuit :
Stub pipe for cooling liquid refill,  filter , high pressure switch, cooling liquid R410a
Evaporator:
Plate heat exchanger with icing protection and differential pressure switch
Condenser:
High efficient,spiral exchanger with ribs, protected with steel net
Axial fan:
Protected thermally and with metal net.
Hydraulic circuit :
Consist of electric pump, plastic water container, valve, manometer 0-10 bar . Evaporator is protected with flow sensor
Temperature control.
is done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions



Technical data
Type TCW B2 TCW B7 TCW C1 TCW C8
Nominal cooling power [W] 23000 28300 32800 37600
Ambient temperature [°C] + 15 - + 4 5
Water temperature [°C] +8 - + 25
Cooling liquid R410A
Power supply [V / Hz] 400 V 3f / 50
Power [W] 13700 15200 16700 18400
Pump:
water flow [l/min] 65,0/150,0 80,0/150,0 95,0/150,0 110,0/150 0
water pressure [bar] 3,7 3,5 3,3 3,1
Container capacity  [l] 240,0

Water terminal[BPS]

 1’’1/2
Weight[kg] 305,0 310,0 340,0 350,0
