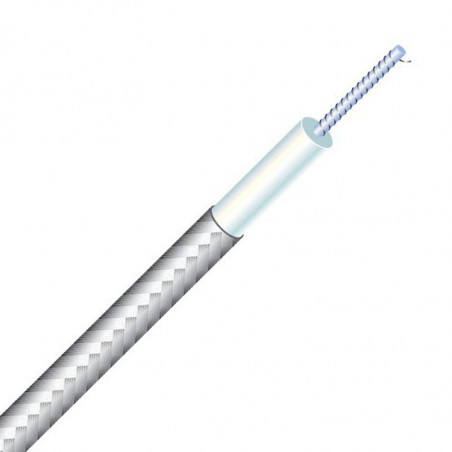

CIP CABLES - C1P / T - C1P / I
CIP CABLES - C1P / T - C1P / I

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Flexelec

CIP CABLES - C1P / T - C1P / I

Aplications

C1P, C1P/T and C1P/I heating cords are mainly used in the household electrical or refrigeration industries, or in machines requiring protection against freezing or temperature maintenance. To ensure that these heating cables elements enjoy a long service life, we recommend using a control device.


Characterictics
  • UL Recognized cords on request.
  • C1P: PVC insulated heating cords.
  • C1P/T: PVC insulated heating cords with tinned copper braid for mechanical protection and earthing.
  • C1P/I: PVC insulated heating cords with stainless steel braid for mechanical protection and earthing.

PRODUCTS INSULATION CLASS
C1P CLASS 0 (single insualated)
CLASS III (if low voltage)
C1P/T – C1P/I CLASS I (earthing)

  C1P C1P/T - C1P/
Support Fibre glass
Ø 0.7 or Ø 1.1 mm
Heating wire nickel-copper or nickel-chrome
Insultaion PVC 105°C
Diameter 2.0 to 3.0 mm 2.3 to 3.3 mm
Max. ohmic value 5000 Ω/m
Max. power 15 W/m
Max. voltage 600 V
Permissible surface temperature from - 30 °C to + 200 °C
Tolerances Resistance ± 10 %
Diameter + 0.2 /- 0.1 mm
