Debes estar logueado
Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Q-Zorb 3000 is used in situations where low frequency (< 2 GHz) noise problems are occurring. Some applications include

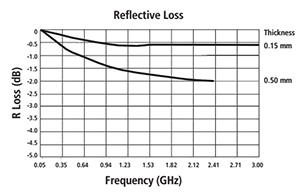

Typical attenuation values
Table of physical properties
Size | 3535 | .006” x 12” x 13” |
---|---|---|
3535-S | .006” x 4” x 6” | |
3536 | .020” x 12” x 13” | |
3536-S | .020” x 4”x 6” | |
Permeability u’ (1MHz) | 37 | |
Electrical resistivity (Ohm) | 6 x 1010 | |
Specific gravity | 3.1 | |
Tensile strength (MPa) | 1.9 | |
Hardness (Durometer A) | 70 ± 10% | |
Thermal conductivity (W / mk) | 1.0 | |
Flammability | UL94 V-0 |
¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?
Usted debe estar conectado
Q-Zorb 3000 is used in situations where low frequency (< 2 GHz) noise problems are occurring. Some applications include
Typical attenuation values
Table of physical properties
Size | 3535 | .006” x 12” x 13” |
---|---|---|
3535-S | .006” x 4” x 6” | |
3536 | .020” x 12” x 13” | |
3536-S | .020” x 4”x 6” | |
Permeability u’ (1MHz) | 37 | |
Electrical resistivity (Ohm) | 6 x 1010 | |
Specific gravity | 3.1 | |
Tensile strength (MPa) | 1.9 | |
Hardness (Durometer A) | 70 ± 10% | |
Thermal conductivity (W / mk) | 1.0 | |
Flammability | UL94 V-0 |
