QX-VISUEX: visualización en forma de un tubo LED diseñado para trabajar en espacios de explosión en
  • QX-VISUEX: visualización en forma de un tubo LED diseñado para trabajar en espacios de explosión en

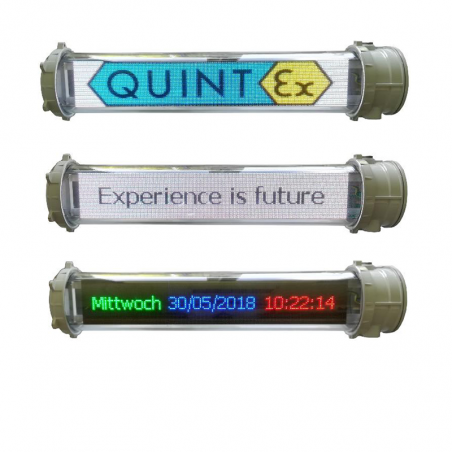

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Quintex

QX-VISUEX: visualización en forma de un tubo LED diseñado para trabajar en espacios de explosión en peligro de extinción

  • For Gas- and Dust Ex, Zone 1/2/21/22
  • Latest LED Technique
  • With WIFI + LAN + USB-Stick
  • High luminosity
  • Very robust structure
  • High chemical resistance


Description


The Quintex Ex approved LED-Matrix-Displays are available in different enclosure sizes and configurations. Texts, pictures, graphics and even videos can be transmitted asynchronously via WIFI or Ethernet to the display. Text, picture and color settings can be freely defined and changed at any time via PC software. Customer specifications can also be implemented in advance by Quintex, for on-site rapid commissioning.

Typical application are plain text displays, visualization of values, fill levels, warning messages, display of date and time, etc. in industrial halls with Ex-zones, offshore, production and filling plants.



Possible application

  • Petro chemistry / Refinery / Offshore
  • Wastewater industry / Sewage treatment
  • Shipbuilding / Tanker
  • Tank farm / Filling station
  • Ex-manufacturing plant


Technical data

  • Material: aluminium die cast with tube of special glass
  • Dimensions: 191 x 150 x 740 mm
  • Ingress protection: IP 66
  • Impact resistance: 7 J
  • Temperature range: -20°C to +40°C
  • Display: RGB, 32x192 px, 16,7 million colours
  • Communication: WiFi, Ethernet
  • Supply / Power: 100-240V AC (max. 65 W)
  • CięWeightżar: 15 kg

CertificatesX

  • ATEX, Zone 1, 2, 21 i 22


Marking

  • II 2G Ex db op is IIC T6/T5
  • II 2D Ex db op is IIIC T120°C


Optionse

  • Customized configuration
  • Pre-setting by Quintex
  • With integrated WIFI or LAN
  • Network for more displays
  • Synchronous system by Controller
  • Customized cables and length for line bushing
  • Brackets for walls, sealing or poles
  • Different enclosure sizes up to 1200mm width
