Serie RECTI-3PH
  • Serie RECTI-3PH

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: PEM

Serie RECTI-3PH

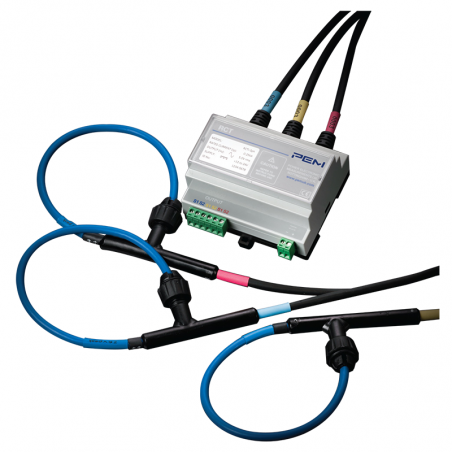

The RCTi is a current transducer for permanent installation. Simple to install and easy to retrofit, the Rogowski (sense) coil is thin, lightweight, flexible and clip-around. The secondary output from the transducer is an instantaneous voltage proportional to the measured primary current providing an accurate, low cost, wide-band measurement of the primary current. The RCTi is typically used with power and harmonic meters and analyzers, current meters, oscilloscopes, data-loggers, data acquisition cards, and in power quality applications.

Features:

  • Easy to retrofit
  • Simple to install in applications where space is limited
  • Non-intrusive - no power drawn from the primary circuit
  • Wide-band up to 1MHz, to measure harmonic components or complex waveforms (e.g. induction heating, VF drives, power measurement
  • The size of the Rogowski coil can be specified independently of the primary current
  • Does not suffer from magnetic saturation
  • Intrinsically safe
  • Equivalent to Class 1 CT or better
  • Low cost monitoring for medium/large currents.

Rated current [Arms] 250, 500, 800, 1000, 1600, 2000, 2500, 3000, 4000, 5000, 8000,
10000, 16000, 20000, 25000, 30000, 40000, 50000
Rated output (Full scale FS)

5,0Vrms (±7,07V peak)
Output limit 150% fs (±10,6V peak)
Supply voltage (Wide input) 12Vdc (-10%) to 24Vdc (+20%)
Max. Input power 1,2W
Operating temperature range -5°C do +65°C (Integrator electronics)
-20°C do +80°C (Coil and cable)
Bandwidth (-3dB) (<2000A) 0,6Hz do 1MHz (300mm) 600kHz (700mm)
(≥2000A) 0,2Hz do 1MHz (300mm) 600kHz (700mm)
Phase shift @50Hz <2000A) 0,9±0,1degrees
(≥2000A) 0,4±0,1 degrees
Accuracy (typ.) ±1.0% of reading (5% to 150% FS, 25°C)
Output load >10,0kΩ
Coil Length 300mm, 500mm lub 700mm (Custom lengths available)
Cable Length (coil to electronics) 1m lub 2,5m (Custom lengths available)

Connections
Catalogue number
Rated current [A]:
250, 500, 800, 1000, 1600, 2000, 2500, 3000, 4000, 5000, 8000, 10000, 16000, 20000, 25000, 30000, 40000, 50000
Cable Length [m]:
1
2,5
.... Custom lengths available
Coil Length [mm]:
300
500
700
.... . Custom lengths available
Options
BC - Isolated BNC-BNC cable split option
Dimensions [mm]
