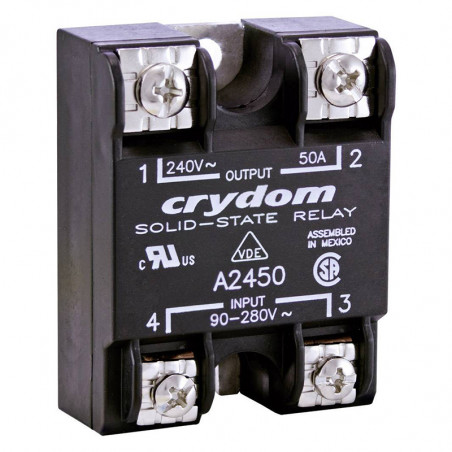

Relés de estado sólido serie CA monofásica 1 | D2425 | D2450

Technical data:

Insulation voltage 4000 VRMS
Input/output capacity 8 pF
Operation temperature range -40°C - 80°C
Operation frequency range 47-63 Hz
witching on method at 0 voltage
Available options:
10-imidiate turn on
4 - for 400 Hz frequency operation
E - Control voltage 18 - 36 VAC (only for HA)
Marking example: 4 HA4890 - B
  HD4890-10

Symbol Input data Output data I2t
[A2s]		 Terminal/casing thermal resistance
[°C/W]		 Dimensions Chart
Control voltage
VRMS AC		 Input current
[mA]		 Load current
ARMS		 Voltage range
VRMS		 Max. voltage
Vpeak		 Max. current
Apeak
A 2410 90 - 280 4(240V)RMS 0,04 - 10 24-280 600 120 60 1,48 rys. 1 2
A 2425 90 - 280 4 (240V)RMS 0,04 - 25 24-280 600 250 260 1,02 rys. 1 4
A 2450 90 - 280 4 (240V)RMS 0,04 - 50 24-280 600 625 1620 0,63 rys. 1 5
A 2475 90 - 280 4 (240V)RMS 0,04 - 75 24-280 600 1000 4150 0,31 rys. 1 6
A 2490 90 - 280 4 (240V)RMS 0,04 - 90 24-280 600 1200 6000 0,28 rys. 1 ^4|
A 24110 90 - 280 4 (240V)RMS 0,15- 110 24-280 600 1500 9340 0,25 rys. 1 8
A 24125 90 - 280 4 (240V)RMS 0,15 - 125 24-280 600 1750 12700 0,22 rys. 1 9
A 4812 90 - 280 4 (240V)RMS 0,04 -12 80-530 800 140 81 1 48 rys. 1 3
A 4825 90 - 280 4 (240V)RMS 0,04 - 25 80-530 800 250 260 1 02 rys. 1 4
A 4850 90 - 280 4 (240V)RMS 0,04 - 50 80 530 800 625 1620 0,63 1A 5
A 4875 90 - 280 4 (240V)RMS 0,04 - 75 80-530 800 1000 4150 0,31 rys. 1 6
A 4890 90 - 280 4 (240V)RMS 0,04 - 90 80-530 800 1200 6000 0,28 rys. 1 7
HA 4812 90 - 280 4 (240V)RMS 0,04 - 12 48-530 1200 140 81 1,48 rys. 1 3
HA 4825 90 - 280 4 (240V)RMS 0,04 - 25 48-530 1200 250 260 1,02 rys. 1 4
HA 4850 90 - 280 4 (240V)RMS 0,04 - 50 48-530 1200 625 1620 0,63 rys. 1 5
HA 4875 90 - 280 4 (240V)RMS 0,04 - 75 48 530 1000 1000 4150 0,31 rys. 1 6
HA 4890 90 - 280 4 (240V)RMS 0,04 - 90 48-530 1200 1200 6000 0,28 rys. 1 7
HA 48110 90 - 280 4(240V)RMS 0,15 - 110 48-530 1200 1500 9340 0,25 rys. 1 8
HA 48125 90 - 280 4 (240V)RMS 0,15 - 125 48-660 1200 1750 12700 0,22 rys. 1 9
HA 6025 90 - 280 4 (240V)RMS 0,04 - 25 48-660 1200 250 260 0,31 rys. 1 4
HA 6050 90 - 280 4 (240V)RMS 0,04 - 50 48-660 1200 625 1620 0,28 rys. 1 5
HA 6090 90 - 280 4 (240V)RMS 0,04 - 90 48-660 1200 1200 6000 0,25 rys. 1 7
HA 60125 90 - 280 4(240V)RMS 0,15 - 125 48-660 1200 1750 12700 0,22 rys. 1 9

Drawing 1
PRZEKAŹNIKI AC JEDNOFAZOWE SERII 1 wymiar

Symbol Input data Output data I2t
[A2s]		 Terminal/casing thermal resistance
[°C/W]		 Dimensions Chart
Control voltage
VRMS AC		 Input current
[mA]		 Load current
ARMS		 Voltage range
VRMS		 Max. voltage
Vpeak		 Max. current
Apeak
D2410 3-32 3,4(5V)DC 0,04 - 10 24-280 600 120 60 1,48 rys. 1 2
D2425 3-32 3,4(5VDC 0,04 - 25 24-280 600 250 260 1,02 rys. 1 4
D2450 3-32 3,4(5V)DC 0,04 - 50 24-280 600 625 1620 0,63 rys. 1 5
D2475 3-32 3,4(5V)DC 0,04 - 75 24-280 600 1000 4150 0,31 rys. 1 6
D2490 3-32 3,4(5VDC 0,04 - 90 24-280 600 1200 6000 0,28 rys. 1 7
D24110 3-32 3,4(5V)DC 0,15 - 110 24-280 600 1500 9340 0,25 rys. 1 8
D24125 3-32 3,4(5V)DC 0,15 - 125 24-280 600 1750 12700 0,22 rys. 1 9
HD4825 3-32 3,4(5V)DC 0,04 - 25 48-530 1200 250 260 1,02 rys. 1 4
HD4850 3-32 3,4(5V)DC 0,04 - 50 48-530 1200 625 1620 0,63 rys. 1 5
HD4875 3-32 3,4(5V)DC 0,04 - 75 48-530 1200 1000 4150 0,31 rys. 1 6
HD4890 3-32 3,4(5V)DC 0,04 - 90 48-530 1200 1200 6000 0,28 rys. 1 7
HD48110 3-32 3,4(5V)DC 0,15 - 110 48-530 1200 1500 9340 0,25 rys. 1 8
HD48125 3-32 3,4(5V)DC 0,15 - 125 48-660 1200 1750 12700 0,22 rys. 1 9
HD6025 3-32 3,4(5V)DC 0,04 - 25 48-660 1200 250 260 0,31 rys. 1 4
HD6050 3-32 3,4(5V)DC 0,04 - 50 48-660 1200 625 1620 0,28 rys. 1 5
HD6090 3-32 3,4(5V)DC 0,04 - 90 48-660 1200 1200 6000 0,25 rys. 1 7
HD60125 3-32 3,4(5V)DC 0,15 - 125 48-660 1200 1750 12700 0,22 rys. 1 9

Drawing 2
PRZEKAŹNIKI AC JEDNOFAZOWE SERII 1 rys		 Drawing 3
 Drawing 4
Drawing 5
 Drawing 6
 Drawing 7
Drawing 8
 Drawing 9
