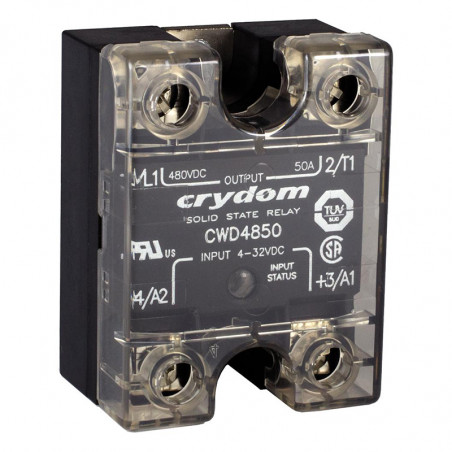

![Solid serie monofásico Relés de estado AC CWA y CWD Solid serie monofásico Relés de estado AC CWA y CWD](https://www.dacpol.eu/6362-large_default/solid-serie-monofasico-reles-de-estado-ac-cwa-y-cwd.jpg)
![Solid serie monofásico Relés de estado AC CWA y CWD Solid serie monofásico Relés de estado AC CWA y CWD](https://www.dacpol.eu/6362-large_default/solid-serie-monofasico-reles-de-estado-ac-cwa-y-cwd.jpg)
Debes estar logueado
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Insulation voltage | 4000 VRMS |
Input/output capacity | 8 pF |
Operation temperature range | -30°C - 80°C |
Operation frequency range | 47-63 Hz |
Switching on method | at 0 voltage |
Build in diode for turning on signalization. | |
Available options: | |
10 - imidiate turn on | |
E - Control voltage18-36VAC | |
P - Internal overvoltage protection (not recommended for capacity load) |
|
S - internal „SNUBBER" | |
H - Foil for better heat dissipation |
Symbol | Symbol | Input data | Output data | Chart | ||||||
---|---|---|---|---|---|---|---|---|---|---|
CWA series | CWD series | |||||||||
Control voltage VRMS AC |
Input current [mA] |
Control voltage VDC |
Input current [mA] |
Load current ARMS |
Voltage range VRMS |
Max. voltage Vpeak |
I2t [A2s] |
|||
CWA2410 | CWD2410 | 90 - 280 | 6 (120VRMS) | 3-32 | 10(12VDC) | 0,15-10 | 24 - 280 | 600 | 660 | 1 |
CWA2425 | CWD2425 | 0,15 -25 | 24 - 280 | 600 | 1500 | 2 | ||||
CWA2450 | CWD2450 | 0,15-50 | 24 - 280 | 600 | 300 | 3 | ||||
CWA2490 | CWD2490 | 0,15 -90 | 24 - 280 | 600 | 7560 | 4 | ||||
CWA24125 | CWD24125 | 0,15- 125 | 24 - 280 | 600 | 16600 | 5 | ||||
CWA4810 | CWD4810 | 90 - 280 | 6 (120VRMS) | 3 -32 | 10(12VDC) | 0,15-10 | 48 - 660 | 1200 | 660 | 1 |
CWA4825 | CWD4825 | 0,15-25 | 48 - 660 | 1200 | 1500 | 2 | ||||
CWA4850 | CWD4850 | 0,15-50 | 48 - 660 | 1200 | 300 | 3 | ||||
CWA4890 | CWD4890 | 0,15 -90 | 48 - 660 | 1200 | 7560 | 4 | ||||
CWA48125 | CWD48125 | 0,15 - 125 | 48 - 660 | 1200 | 16600 | 5 |
![]() |
Drawing 1![]() |
Drawing 2![]() |
Drawing 3![]() |
Drawing 4![]() |
Drawing 5![]() |
