M2Ext - Convertidor de temperatura con entrada de termopar - configurable
  • M2Ext - Convertidor de temperatura con entrada de termopar - configurable

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: M-SYSTEM

M2Ext - Convertidor de temperatura con entrada de termopar - configurable

  • M2EXT

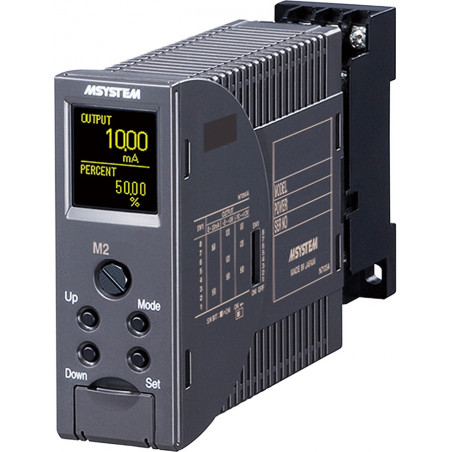

M2EXT is a temperature converter with thermocouple input - configurable.


Features

  • AC / DC power
  • LED power indicator
  • OEL display
  • Programmable via PC
  • Provides standard analog output signal
  • DIN rail mounting
  • Isolation 2000V AC

Types of inputs: Thermocouple - K, E, J, T, B, R, S, N, U, L, P
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC powered : 2000V AC
When powered by AC: 1500V AC
Ranges selection Programmable via PC
Double Output None < / td>
Power AC / DC
Operating temperature - 5 to + 55 ° C
Mounting DIN rail
Dimensions 29.5x83x124mm
