M3SXT - Convertidor de temperatura con entrada de termopar - configurable
  • M3SXT - Convertidor de temperatura con entrada de termopar - configurable

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: M-SYSTEM

M3SXT - Convertidor de temperatura con entrada de termopar - configurable

  • M3SXT

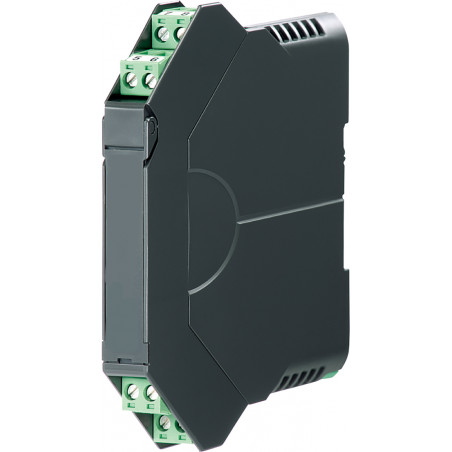

M3SXT is a temperature converter with thermocouple input - configurable.


Features

  • AC / DC power
  • Programmable via PC < / li>
  • Provides standard analog output
  • LED power indicator
  • DIN rail mounting
  • 2000V AC isolation
  • Perfect as a spare part

Input types: Thermocouple - K, E, J, T, B, R, S, N
Output types: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength < / th> On power DC: 2000V AC
When powered by AC: 1500V AC
Ranges selection Programmable via PC
Double Output None < / td>
Power AC / DC
Operating temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 18x106x110.5mm
