Fabricante: Concept

Controladores de escala-IDRIVER

SCALE-iDriver Drivers

Power integrations SCALE-iDriver™ gate drivers are optimized for driving MOSFETs and SiC MOSFETs as well as IGBTs. These are innovative products that use Power Integrations’ pioneering FluxLink™ magneto-inductive bi-directional communications technology to 1200 V and 1700 V driver applications.

  • FluxLink technology reduces amount of short-lived opto-electronics and associated compensation circuitry, thereby enhancing operational  reliability and stability while reducing system complexity
  • Advanced protection features, commonly found in medium- and high-voltage applications, enhance product reliability
  • AEC-Q100 qualified for automotive applications SCALE-iDriver ICs can drive up to 8A @ 125°C junction temperature, and support 600, 650, 750 and 1200V IGBT and SiC inverter designs up to several hundred kW without a booster stage

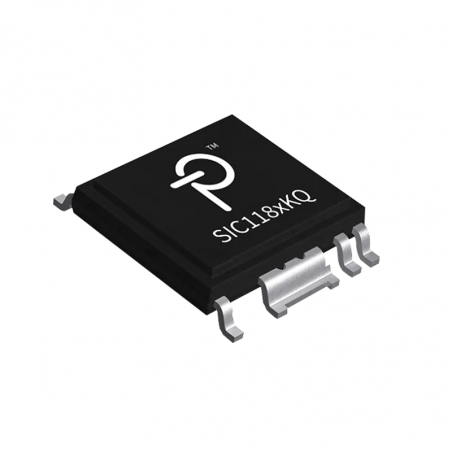

  • Innovative eSOP package features 9.5 mm of creepage and a Comparative Tracking Index (CTI) = 600, ensuring substantial operating voltage margin and high system reliability

AEC-Q100 Qualified for Automotive Use
Driver type IOUT [A] UB
[V]		 fmax [Hz] Typical applications

SID1132KQ

 2,5 600-1200 75 EV-power train, EV-on board charger, drivers and inventers

SID1181KQ

 8 600-1200 75

SID1182KQ

 8 600-1200 75

SIC1181KQ

 8 750 150 EV BEV Traction, Hybrid PHEV traction, EV on board charger

SIC1182KQ

 8 1200 150

SiC MOSFET Gate Driver ICs
Driver type IOUT [A] UB
[V]		 fmax [Hz] Typical applications

SID1183K

 8 1700 75 Servo drive, DC-charger, PV, Welding, Commercial EV, medical equipment

IGBT/MOSFET Gate Driver ICs
Driver type IOUT [A] UB
[V]		 fmax [Hz] Typical applications

SID1102K

 5 600-1200 (wzmocnione) 75 UPS, Commercial AC, VFD, Welding, DC charger

SID1151K

 5 1200/650 (podstawowe/wzmocnione) 75 Servo Drive, AC-drive, PV,Delivery Car, EV-Bus, Medical Equipment

SID1181K

 8 1200/650 (podstawowe/wzmocnione) 75

SID1112K

 1 600-1200 (wzmocnione) 75 Serwonapędy,instalacje fotowoltaiczne, wyposażenie medyczne, autobusy elektryczne, silniki prądu zmiennego

SID1132K

 2,5 600-1200 (wzmocnione) 75

SID1152K

 5 600-1200 (wzmocnione) 75

SID1182K

 8 600-1200 (wzmocnione) 75

IGBT Gate Driver Ics
Driver type IOUT [A] UB
[V]		 fmax [Hz] Typical applications

SIC1182K

 8 600-1200 150 690 AC-Drive, MVD
