Fabricante: PEM

Serie RCT1A

Series RCT1A

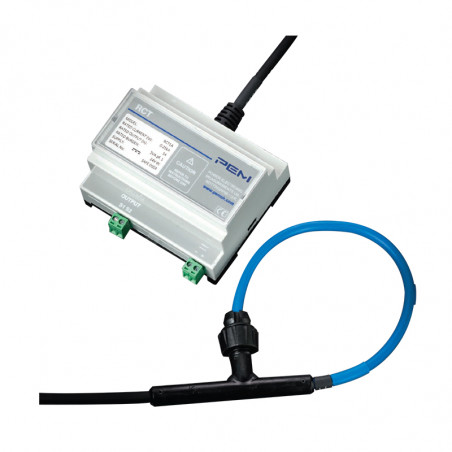

The RCT1A is a genuine Current Transformer (CT) replacement but has all the intrinsic benefits of a thin, light-weight, flexible, clip-around Rogowski (sense) coil. Just like a CT the RCT1A secondary output is an industry standard 0 to 1A (5VA pf 1) instantaneous current proportional to the measured primary current.
Typically the RCT1A is used with power, current and power quality meters and is an ideal replacement for CTs in retrofit applications to avoid plant shutdown, applications with limited space for installation and particularly where existing monitoring equipment designed for a 0 to 1A CT input is installed.


Features:

  • Easy to retrofit
  • Simple to install in applications where space is limited
  • The size of the Rogowski coil can be specified independently of the primary current
  • Does not suffer from magnetic saturation
  • Intrinsically safe - No danger of open circuit secondaries
  • Equivalent to Class 1 CT or better (phase error <0.5degrees (45 to 65Hz).
Rated current (rms) 500, 800, 1000, 1600, 2000, 2500, 3000, 4000, 5000, 8000, 10000, 16000, 20000, 25000, 30000, 40000, 50000
Rated output (Full scale FS) 1A RMS
Output limit 120% FS (1.2A rms)
Operating temperature range -5°C do +40°C (Integrator electronics)
-20°C do +80°C (Coil and cable)
Bandwidth (-3dB) 0.6Hz to 5kH
Phase shift @ 50Hz < 0.5 degrees
Accuracy (typ.) ±1.0% of reading (20% to 120% FS, 25°C)
Rated burden Od 5Ω do 1.25Ω
Coil Length 300mm, 500mm or 700mm Custom lengths available
Cable Length (coil to electronics) 1m or 2,5m Custom lengths available


Connections

Seria RCT1A podlaczenie


Generating the part code

Seria RCT1A numer katalogowy


Rated current [A]:
500, 800, 1000, 1600, 2000, 2500, 3000, 4000, 5000, 8000, 10000, 16000, 20000, 25000, 30000, 40000, 50000
Cable Length [m]:
1
2,5
.... custom lengths
Coil Lenght[mm]
500
700
.... custom lengths
Dimensions [mm]

Seria RCT1A wymiary
