Fabricante: OMERIN

SILICABLE NVS y NVSL -60 ° C a + 350 ° C

Characteristics

• Continuous operating temperatures: -60 °C to +350 °C
• Excellent resistance to thermal shocks and oxidization of core.
• Rated voltage:
      NVS: 300/500V
      NVSL: 300/300V
• Test voltage:
      NVS: 2000V
      NVSL: 1500V

Standard products

• Standard colour: brown.
• Other colours on request including yellow/green.

Approvals - standards

• nikel typ 200, zgodne z normami DIN 17753, DIN 17740 i ASTM B 160,
• VERITAS approval certificates: > No. BV 153552. > No. BV 256192.
• VDE test report no. 9296-5950-0001/ 32YAT F42/sld-Fc.

Applications

• Cabling for heating resistors, cartridges, bands and plates.
• Domestic electrical heating appliances: kitchens, professional ovens, etc
• Machines for thermoplastics or rubber.
• Industrial furnaces and air ovens

Options

• Reduced outer diameters: ref. NVSL (See details of this option below).
• Fibreglass outer braid coated with PTFE varnish: ref. NVF.
• Other nominal cross-sections: contact us.
• Other core stranding: contact us.

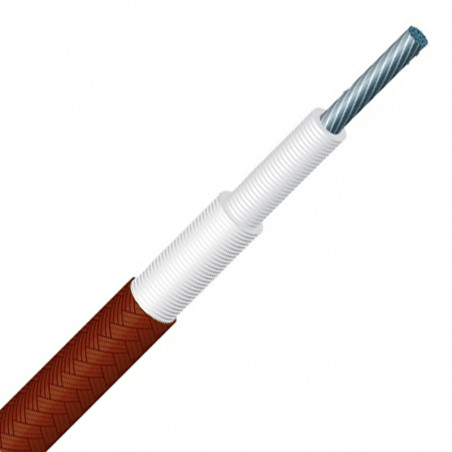

1 • Stranded or flexible nickel core
2 • Impregnated fibreglass lappings.
3 • Silicone-coated fibreglass braid.

Conducting core

INSULATED WIRE OR CABLE
Nominal cross-section
[mm2]		 Nominal stranding Maximum linear resistance at
20 °C
[Ω/km]		 Nominal diameter
[mm]		 Approximate linear weight
[kg/km]
0,22 7 x 0,20 573 1,4 4,6
0,25 8 x 0,20 503 1,9 5,7
0,5 7 x 0,30 229 2,1 8,8
0,75 11 x 0,30 156 2,4 11,9
1 14 x 0,30 115 2,5 14,5
1,34 19 x 0,30 93,1 2,6 15,9
1,5 21 x 0,30 77,2 2,8 19,1
2 29 x 0,30 58,0 3,0 22,1
2,5 35 x 0,30 47,2 3,2 29,3
4 56 x 0,30 31,5 4,3 47,4
6 84 x 0,30 21,0 4,8 67,5
8 119 x 0,30 15,5 5,8 82,3
10 140 x 0,30 12,1 6,8 106
16 224 x 0,30 7,72 8,2 192
25 354 x 0,30 4,97 10,1 302
35 495 x 0,30 3,53 12,0 395
50 707 x 0,30 2,46 13,2 556
70 999 x 0,30 1,73 16,3 785

Option • NVSL

Conducting core

INSULATED WIRE OR CABLE
Nominal cross-section
[mm2]		 Nominal stranding Maximum linear resistance at
20 °C
[Ω/km]		 Nominal diameter
[mm]		 Approximate linear weight
[kg/km]
0,22 7 x 0,20 573 1,2 3,8
0,25 8 x 0,20 503 1,3 4,1
0,34 11 x 0,20 366 1,4 5,1
0,5 7 x 0,30 229 1,4 6,2
0,75 11 x 0,30 156 1,8 9,0
1 14 x 0,30 115 2,1 10,9
1,34 19 x 0,30 93,1 2,3 14,5
1,5 21 x 0,30 77,2 2,5 15,2
2 29 x 0,30 58,0 2,7 20,7
2,5 35 x 0,30 47,2 3,0 24,5
4 56 x 0,30 31,5 3,6 38,6
6 84 x 0,30 21,0 4,4 57,7
