Siligaína 15C5 de -60 ° C a + 250 ° C (Clase H y C)
  • Siligaína 15C5 de -60 ° C a + 250 ° C (Clase H y C)

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: OMERIN

Siligaína 15C5 de -60 ° C a + 250 ° C (Clase H y C)

SILIGAINE® 15C5 -60 °C to +250 °C Classes H and C

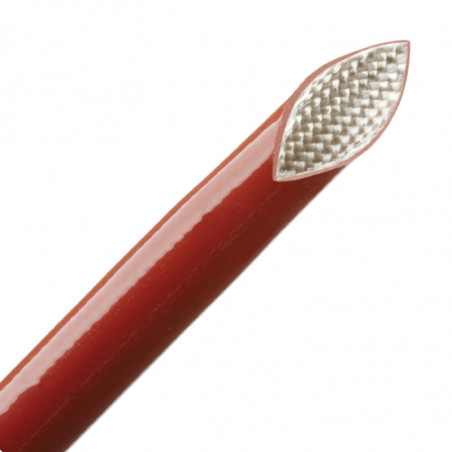

15C5 - FIBREGLASS BRAIDED SLEEVING WITH SILICONE RUBBER COATING

Characteristics
• Continuous operating temperature: -60 °C to +250 °C.
• Good resistance to humidity, ozone and UV
• Good resistance to common chemical environments
• Compatible with most impregnation varnishes class H
• Self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441.
• Very good flexibility.
• Halogen-free.
• Dielectric strength (dry): > 5 kV

Standard products
• Colour : brick red.

Packaging
• Diameters from 0.5 to 4.5 mm: 200 m rolls.
• Diameter 5 mm: 100 m rolls
• Diameters from 6 to 14 mm: 100 m spools.
• Diameters from 16 to 22 mm: 50 m spools.
• Diameter 25 mm: 25 m rolls.

Standards
• IEC 60684-1 and 60684-2
• IEC 60684-3 part 400.

Applications
• Internal cabling for class H and C rotating machines (motors, alternators, generators, transformers, inductors, etc.).
• All insulations up to 250°C permanent in the electric and electronic constructions, heating appliances, lighting, automobile, measuring, control, etc.

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.


INTERNAL DIAMETER SILIGAINE 15C5
Nominal value (mm) Tolerance (mm) Approximate wall thickness (mm) Approximate linear weight (kg/km)
0.5 ±0.15 0.50 3.7
0.8 ±0.15 0.50 4.2
1 ±0.20 0.50 4.7
1.5 ±0.20 0.50 5.7
2 ± 0.20 0.50 6.9
2.5 ± 0.20 0.50 8.2
3 ± 0.20 0.50 9.5
3.5 ± 0.25 0.50 10.9
4 ± 0.25 0.60 12.4
4.5 ± 0.25 0.60 14.0
5 ± 0.25 0.60 15.7
6 ± 0.25 0.60 19.4
7 ± 0.25 0.60 23.3
8 ± 0.25 0.60 27.7
9 ± 0.50 0.80 32.3
10 ± 0.50 0.80 37.3
12 ± 0.50 0.80 62.5
14 ± 1.0 0.80 80.8
16 ± 1.0 0.90 101
18 ± 1.0 1.00 124
20 ± 1.0 1.00 148
22 ± 1.0 1.00 174
25 ± 1.0 1.20 217
