Fabricante: Crydom

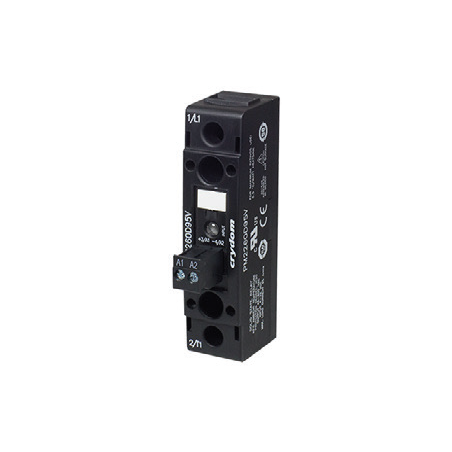

SERIE PM22

  • Output range up to 95 Amperes at 600 VAC
  • Built-in surge protection
  • DBC substrate for better thermal performance
  • LED input status indicator
  • Touch-safe IP20 enclosure
  • AC or DC control
  • Optical isolation at 4000 VAC
  • Approved by C-UL-US and TUV

Product Selection

Control Voltage 25A 50A 95A
90-280 VAC/VDC PM2260A25V PM2260A50V PM2260A95V
4-32 VDC PM2260D25V PM2260D50V PM2260D95V


Specifications

Output

Description 25A 50A 95A
Operating Voltage (47-440Hz) [Vrms] 48-600 48-600 48-600
Transient Overvoltage [Vpk] 1200 1200 1200
Maximum Leakage Current at Rated Voltage [mArms] 1 1 1
Minimum dV/dt in the Off-State at Maximum Rated Voltage [V/usec] 500 500 500
Load Current, General Application UL508/LC and IEC62314 at 40 degrees Celsius [Arms] 25 50 95
Load Current, Motor Start UL508 FLA/LC and IEC62314 at 40 degrees Celsius [Arms] 8.5/4.8 14/7.6 26/14
Minimum Load Current [mArms] 100 100 100
Maximum Amplitude of Single Current Pulse (50/60Hz) [Apk] 286/300 716/750 1290/1350
Maximum Voltage Drop during Operation at Rated Current [Vrms] 1.35 1.35 1.30
Thermal Resistance Junction-Case (Rjc) [degrees Celsius/W] 0.49 0.27 0.2
Maximum I2t for Trip (½ cycle) (50/60Hz) [A2 sec] 409/375 2563/2343 8320/7593
Minimum Heat Dissipation Capability at Rated Current at 40 degrees Celsius [degrees Celsius/W] 2 0.7 0.25
Minimum Power Factor (at Maximum Load) 0.5 0.5 0.5
Motor Parameters UL 508/IEC62314 [HP (kW)]: 120 VAC 0.5 (0.37) 1 (0.74) 2 (1.5)
Motor Parameters UL 508/IEC62314 [HP (kW)]: 240 VAC 1.5 (1.1) 3 (2.2) 5 (3.73)
Motor Parameters UL 508/IEC62314 [HP (kW)]: 480 VAC 3 (2.24) 5 (3.7) 10 (7.4)


Input

Description PM2260DxxV PM2260AxxV
Control Voltage Range 4-32 VDC 90-280 VAC/VDC
Maximum Reverse Voltage -32 VDC -
Minimum Turn-On Voltage 4 VDC 90 VAC/VDC
Required Turn-Off Voltage 1 VDC 5 VAC/VDC
Minimum Input Current (for turn-on) 7 mA 6 mA
Maximum Input Current 15 mA 10 mA
Rated Input Impedance Current-regulated Current-limited
Maximum Turn-On Time [msec] ½ cycle 20
Maximum Turn-Off Time [msec] ½ cycle 30


General

Description Parameters
Dielectric Strength, Input to Output (50/60Hz) 4000 Vrms
Dielectric Strength, Input/Output to Base Plate (50/60Hz) 4000 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 8pF
Ambient Temperature Range for Operation -40 to 80 degrees Celsius
Ambient Temperature Range for Storage -40 to 100 degrees Celsius
Rated Short Circuit Current 100kA
Weight (typical) 65
Housing Material UL94 V-0
Base Plate Material Aluminum
Internal Finish Nickel Plated
Input Terminal Screw Torque (Nm) 0.5
Load Terminal Screw Torque Range (Nm) 2-2.2
Torque Range for Mounting SSR (Nm) 2.2-2.8
Humidity for IEC 60068-2-78 95% non-condensing
Status Indicator LED Green


Order Options

Series
PM22
60: 48-600 VAC
Control Voltage
A: 90-280 VAC/VDCD: 4-32 VDC
Rated Load Current
25: 25 Amperes50: 50 Amperes95: 95 Amperes
Terminal Configuration
V: Contactor Configuration
Switching Type
Blank: Zero Voltage SwitchingR: Instantaneous Switching (Certified motor parameters)
Input Connection
Blank: Screw Terminal
J: Spring Terminal
Thermal Pad
Blank: NoneH: Included


Required for valid part number - None

Accessories

Contactor Part Numbers: CP201 CP202 Accessory Part Number: HK8
Plug-in input contacts, 2 positions, with either screw terminals (CP201) or spring terminals (CP202). Compatible with NOVA22 SSR contactor configuration. Bag with two SSR mounting screws 8-32 x 3/8, hexagonal head, compatible with PM22 series SSR panel mount. Used for mounting SSR to any of our heat sinks.
Radiator Part Number: HS259DR Thermal pad Part Number: HSP-7
Mountable on DIN rail heat sink with thermal resistance of 2.5 degrees Celsius/W. The material of the heat sink is black anodized aluminum. Suitable for single panel-mounted PM22 series SSR. Non-adhesive thermal pad for SSR housing in a semi-circular shape. Compatible with panel-mounted PM22 series SSR.
