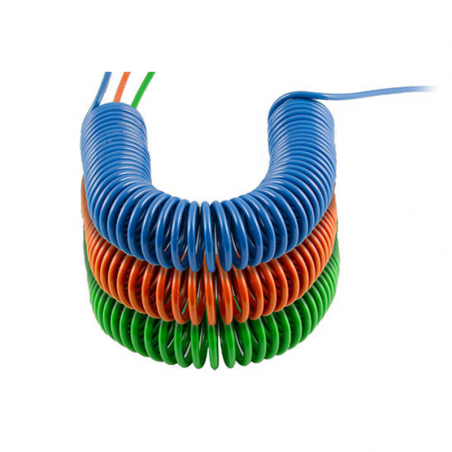

Cables espirales
  • Cables espirales

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: AirTAC

Cables espirales

- Wires compatible with ROHS.
- high flexibility, small bending radius .
- Long life time
- High medium flow.


Code External diameter [mm] Internal diameter.[mm] Pressure at 23°C [bar] Max pressure at 23°C
[bar]		 Bending radius [mm] Length  [m] Temperature [°C]
UCS080050_060___ 8.0 5.0 8.0 35 38 6 -20 - + 70
UCS080050_090___ 8.0 5.0 8.0 35 38 9
UCS080050_120___ 8.0 5.0 8.0 35 38 12
UCS080050_ 150___ 8.0 5.0 8.0 35 38 15
UCS080055_060___ 8.0 5.5 6.0 24 38 6
UCS080055_090___ 8.0 5.5 6.0 24 38 9
UCS080055_ 120___ 8.0 5.5 6.0 24 38 12
UCS080055_150___ 8.0 5.5 6.0 24 38 15
UCS100065_060___ 10.0 6.5 8.0 32 50 6
UCS100065_090___ 10.0 6.5 8.0 32 50 9
UCS100065_120___ 10.0 6.5 8.0 32 50 12
UCS100065_150___ 10.0 6.5 8.0 32 50 15
UCS120080_060___ 10.0 8.0 2.5 10 60 6
UCS120080_090___ 10.0 8.0 2.5 10 60 9
UCS120080_120___ 10.0 8.0 2.5 10 60 12
UCS120080_150___ 10.0 8.0 2.5 10 60 15


Code
UCS 80 50 BU 090M A 1
Model External diameter Internal diameter. Colour Length Straight interval ferrule type
  | | | | | |
  | 5.0mm : 050 | 6m : 060m | 1: without
  | 5.5mm : 055 | 9M : 090m | 2: female- male
  | 6.5mm : 065 | 12M : 120m | 3: male- female
  | 8.0mm : 080 | 15M : 150m |
  8.0mm : 080   BU : blue   A: 30cm and 10cm
  10.0mm : 100   BK : black   B: 10cm and 10cm
  12.0mm : 120   GE : orange         C: without
      CR : transparent
      R : red
      Y : yellow
      WH : white
      CB : blue transparent
