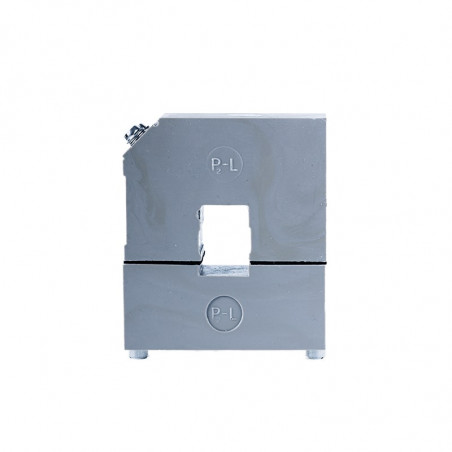

Split core current transformer cl. 0.5, 1, 3 (on request 0.2, 0.2s, 0.5s).
A very wide range of window sizes of the internal transformer.
Suitable for busbar and cable. Resin casing.
Parameters | |
---|---|
Security factor | FS5 |
Rated voltage (maximum) | 720V |
Test voltage | 3kV AC (60s) |
Frequency | 50-60Hz |
Rated short-time thermal current | 60x In |
Rated dynamic current | 2,5 x Ith |
Continuous overload | 1,2 x In |
Operating temperature | -10…50ºC |
Rated secondary current | 1A lub 5A |
SPLIT CORE TYPE | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | TA30R | TA60R | TA80R | TA100R | TA125R | TA160R | ||||||||||||
Bus-bar | 30x20 | 60x30 | 80x50 | 100x80 | 125x80 | 160x80 | ||||||||||||
Cable | Ø20 | Ø30 | Ø50 | Ø80 | Ø80 | Ø80 | ||||||||||||
Accuracy | 0,5 | 1 | 3 | 0,5 | 1 | 3 | 0,5 | 1 | 3 | 0,5 | 1 | 3 | 0,5 | 1 | 3 | 0,5 | 1 | 3 |
Ipn (A) | VA | VA | VA | VA | VA | VA | ||||||||||||
100 | 3 | |||||||||||||||||
150 | 3,75 | |||||||||||||||||
200 | 2,5 | 4 | ||||||||||||||||
250 | 3,75 | 5 | 2,5 | 3,75 | 2,5 | 3,75 | 2,5 | 3,75 | ||||||||||
300 | 2,5 | 4 | 6 | 3,75 | 5 | 3,75 | 5 | 3,75 | 5 | |||||||||
400 | 3,75 | 5 | 10 | 2,5 | 3,75 | 7,5 | 2,5 | 3,75 | 7,5 | 2,5 | 3,75 | 7,5 | ||||||
500 | 3,75 | 5 | 15 | 3,75 | 5 | 15 | 3,75 | 5 | 15 | 5 | 7,5 | 2,5 | 3,75 | 7,5 | ||||
600 | 5 | 7,5 | 20 | 5 | 7,5 | 20 | 5 | 7,5 | 20 | 5 | 15 | 3,75 | 5 | 10 | ||||
750 | 7,5 | 10 | 20 | 7,5 | 10 | 20 | 7,5 | 10 | 20 | 5 | 10 | 20 | 5 | 10 | 20 | |||
800 | 7,5 | 10 | 20 | 7,5 | 10 | 20 | 7,5 | 10 | 20 | 7,5 | 10 | 20 | 7,5 | 10 | 20 | |||
1000 | 10 | 15 | 20 | 10 | 15 | 20 | 10 | 15 | 20 | 10 | 20 | 30 | 10 | 20 | 30 | |||
1200 | 15 | 20 | 30 | 15 | 20 | 30 | 15 | 20 | 30 | |||||||||
1500 | 15 | 20 | 30 | 20 | 30 | 45 | 0 | 30 | 45 | |||||||||
2000 | 20 | 30 | 45 | 25 | 30 | 45 | 25 | 30 | 45 | |||||||||
2500 | 25 | 30 | 45 | 25 | 30 | 45 | ||||||||||||
3000 | 30 | 45 | 60 | 30 | 45 | 60 | ||||||||||||
4000 | 30 | 45 | 60 | |||||||||||||||
5000 | 30 | 45 | 60 |
MODEL | A | B | C | D | E | F |
---|---|---|---|---|---|---|
TA30R | 32 | 21 | 105 | 90 | 99 | 114 |
TA60R | 62 | 32 | 130 | 100 | 109 | 139 |
TA80R | 82 | 52 | 150 | 120 | 129 | 159 |
TA100R | 104 | 82 | 172 | 150 | 159 | 181 |
TA125R | 127 | 82 | 195 | 150 | 159 | 204 |
TA160R | 162 | 82 | 230 | 150 | 159 | 239 |
