Lámparas de calle LED

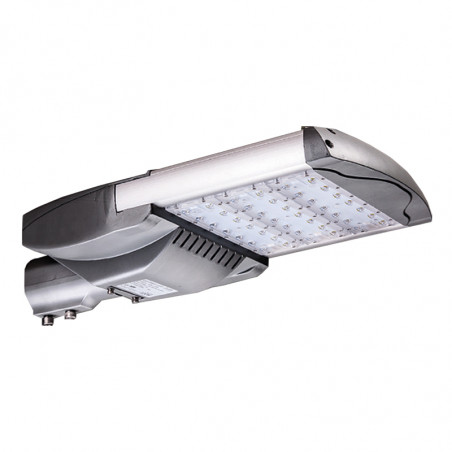

ML-21 XXX street lamps are high-efficiency lamps equipped with Philips diodes.

Philips street lamps not only offer high light efficiency but also feature great quality and long lifespan. The light distribution is achieved through a special optical lens system, eliminating the need for a reflector. Thanks to the wide-angle optics, these LED street lamps can be used in various applications. The mounting height of the street lamp reaches up to 20m. The photometric distribution of the fixtures can be downloaded from our website.

Street lamp specifications

Light source	KSE – LED modules
Power	35 W to 235 W
Luminous flux	3,325 lm to 21,850 lm
Light color	5,000 K (other options available)
CRI	>70
Diode lifespan at 25°C (L70 B50)	50,000 h
Failure rate	0.10 % after 5,000 h
Operating temperature	-40°C to +50°C
Power supply	integrated
Power input	AC 100 V - 240 V, 50/60 Hz
Housing	aluminum
Housing color	silver or black
Optics	asymmetric wide-angle
Mounting	replaceable LED modules
Warranty period	5 years
Ingress protection	IP 65

Technical details of the street lamp

• Compact and lightweight design,
• various power options 35 W - 235 W,
• lighting intensity between 3,325 - 21,850 lumens,
• standard light color 5,000 K (other options on request),
• CRI > 70 (higher available on request),
• dimming option available,
• excellent thermal heat distribution,
• high degree of protection IP65 / IK08,
• energy efficiency up to 95 lm / W,
• long lifespan - 60,000 h at T 25°C, L70 B50 light quality,
• high contrast light created,
• lamp is 100% switched off by power-on, no glowing effect,
• large light distribution.

Serial Number	Optics	Lumens [lm]	Power [W]	Weight [kg]	Number of LEDs
Street Lamp ML-21030-5000-HE	Asymmetric wide-angle optics	3,325	35	5.3	14
Street Lamp ML-21060-5000-HE	Asymmetric wide-angle optics	6,175	65	6.1	28
Street Lamp ML-21090-5000-HE	Asymmetric wide-angle optics	9,500	100	7.3	42
Street Lamp ML-21120-5000-HE	Asymmetric wide-angle optics	12,825	135	8.2	56
Street Lamp ML-21150-5000-HE	Asymmetric wide-angle optics	15,675	165	9.0	70
Street Lamp ML-21180-5000-HE	Asymmetric wide-angle optics	19,000	200	9.9	84
Street Lamp ML-21210-5000-HE	Asymmetric wide-angle optics	21,850	230	10.8	98

Photometric distribution of fixtures and installation methods for street lamps

ML - 21030 - 5000 - HE installation tips: 4 - 6 meters	ML - 21060 - 5000 - HE installation tips: 5 - 8 meters
ML - 21090 - 5000 - HE installation tips: 7 - 10 meters	ML - 21120 - 5000 - HE installation tips: 8 - 12 meters
ML - 21150 - 5000 - HE installation tips: 10 - 13 meters	ML - 21180 - 5000 - HE installation tips: 10 - 15 meters
ML - 21210 - 5000 - HE installation tips: 12 - 20 meters

Installation Options - LED Street Lamps

The innovative mounting bracket solution allows for the installation of the lamp in both horizontal and vertical positions, and also includes an adjustment feature of 0-15° for each installation direction.

• LED color temperature 5,000 K/750 (other options available)
• Electronic driver without functions
• Mounting accessories: for installing the lamp on a 60mm diameter arm
• Optional dimming function with the use of an electronic driver, with a 1-10V DC interface, PWM, or resistance; DALI interface also available upon request
• Optional twilight sensor for automatic on/off switching

Dimensions of Street Lamps

Applications and Benefits of ML-21 Street Lamps

ML-21 Philips LED street lamps are an excellent choice for a wide range of outdoor applications, including street lighting, roads, sidewalks, squares, and industrial spaces. With modern LED technology, they offer exceptional luminous efficiency and longevity, making them suitable for use in public and industrial areas where reliability and energy savings are essential.

Choosing ML-21 Philips lamps guarantees not only high-quality light but also durability in harsh weather conditions. The IP65 protection ensures full resistance to dust and rain, making these lamps suitable even in extreme weather conditions. Additionally, the use of long-life LED diodes makes the lamps ideal for facilities requiring minimal maintenance.

Why Choose Philips LED Street Lamps?

ML-21 Philips industrial lamps combine advanced LED technology with reliability, durability, and high quality. Thanks to innovative LED modules, these lamps are characterized not only by excellent energy efficiency but also by longevity – the LED diodes have a lifespan of up to 60,000 hours. Additionally, ML-21 LED lamps provide better light quality, improving safety both on the roads and in urban spaces.

With integrated LED modules, they not only reduce electricity costs but also lower CO2 emissions, contributing to environmental protection. Philips LED lamps are also more environmentally friendly than traditional lighting solutions, which contain harmful substances such as mercury.

Philips Street Lamp Features in Terms of Energy Savings and Durability

ML-21 Philips industrial lighting stands out with excellent energy efficiency, achieving up to 95 lm/W, which allows for significant energy savings compared to traditional lighting technologies. Thanks to the use of long-life LED diodes (up to 60,000 hours at T 25°C), these lamps offer lower operational and replacement costs, making them an exceptionally cost-effective solution for many years.

Adjusting Lamp Parameters for Different Installation Heights

ML-21 Philips street lamps offer a wide range of power options (from 35 W to 235 W), which allows for adjusting the lighting parameters to different installation heights, from 4 to 20 meters. This makes these lamps suitable for various applications, including roads, parking lots, squares, and other public and industrial spaces.

Depending on the required power and installation height, the lamps offer different light intensities and beam widths, which allows for optimal adjustment of lighting to the specific needs of a given location.

Mounting Options and Flexibility of Lamp Installation

ML-21 Philips features an innovative mounting bracket that allows for installing the lamp in both horizontal and vertical positions. With the angle adjustment feature (0-15°), users can precisely direct the light in the desired direction, ensuring maximum lighting efficiency depending on the required location.

Additionally, the lamps can be installed on arms with a 60mm diameter, ensuring easy and flexible installation in various conditions. Control options such as dimming functions and twilight sensors allow the lamps' operation to be adjusted to changing lighting conditions, further increasing energy savings and user comfort.
