Fabricante: MEN Mikro Elektronik

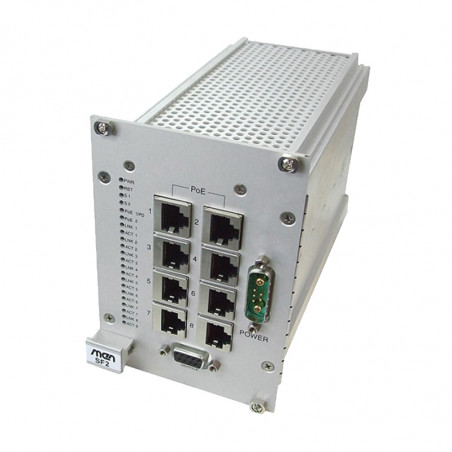

SF 19 "Serie de servicio de conmutación dedicada para regulaciones RJ 45 / M12 Conector

Specifications:
  • Managed 8-port rugged Ethernet switch
  • 3U, 18 HP, 19" rack mountable
  • 8 Fast Ethernet ports on RJ45 connectors
  • Power over Ethernet PSE functionality
  • Configuration via Telnet CLI, SNMP ver. 3 or external dongle
  • Service interface via D-Sub
  • LEDs for port, PoE and board states
  • Wide input range PSU (14.4 to 154 V), EN 50155 qualified
  • -40 to +70(+85)°C according to EN 50155 Class Tx with qualified components


Standard Configurations:

Artivle No. Connectors Front Panel Management Power over Ethernet

19SF01-00

 RJ45 18 HP Unmanaged YES (PSE on ports 1 i 2)

19SF02-00

 RJ45 18 HP Managed YES (PSE on ports 1 i 2)

19SF03-00

 M12 22 HP Managed YES (PSE on ports 1 i 2)

19SF04-00

 M12 22 HP Unmanaged YES (PSE on ports 1 i 2)
