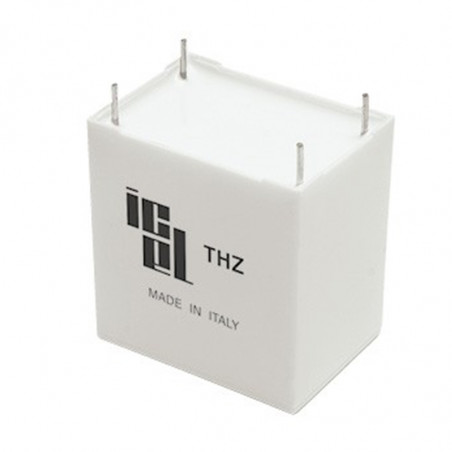

Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Main applications
Execution and reference standard
|
THZ | Ur | Cn (μF) | du/dt (V/μs) | Irms max. (A) | Nom. size B (mm) x H (mm) x L (mm) | Pitch (mm) |
---|---|---|---|---|---|---|
450 Vdc (240 Vac) | 3 ÷ 47 | 28.5 ÷ 62.5 | 7 ÷ 27 | 14x28x32 ÷ 38x57.5x57.5 | 27.5 ÷ 52.5 | |
550 Vdc (300 Vac) | 2.2 ÷ 33 | 36.5 ÷ 82.5 | 7 ÷ 27 | 14x28x32 ÷ 38x57.5x57.5 | 27.5 ÷ 52.5 | |
630 Vdc (340 Vac) | 1.5 ÷ 22 | 82.5 ÷ 182.5 | 7.5 ÷ 29 | 14x28x32 ÷ 38x57.5x57.5 | 27.5 ÷ 52.5 | |
720 Vdc (400 Vac) | 1 ÷ 17.5 | 97 ÷ 220 | 7.5 ÷ 28.5 | 14x28x32 ÷ 38x57.5x57.5 | 27.5 ÷ 52.5 | |
800 Vdc (440 Vac) | 1 ÷ 14 | 105 ÷ 235 | 7.5 ÷ 29 | 18x33x32 ÷ 38x57.5x57.5 | 27.5 ÷ 52.5 | |
900 Vdc (475 Vac) | 0.68 ÷ 12 | 120 ÷ 272.5 | 7 ÷ 29 | 14x28x32 ÷ 38x57.5x57.5 | 27.5 ÷ 52.5 | |
1040 Vdc (550 Vac) | 0.68 ÷ 9 | 135 ÷ 320 | 8 ÷ 27 | 18x33x32 ÷ 38x57.5x57.5 | 27.5 ÷ 52.5 |
