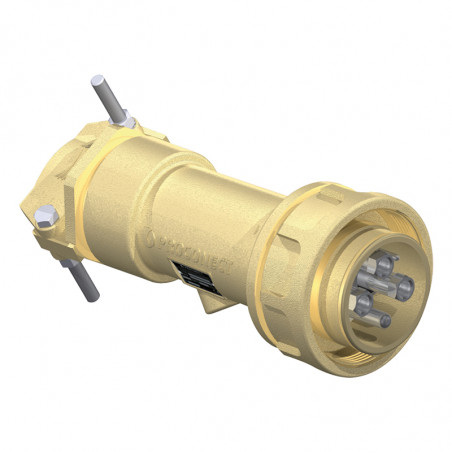

Conectores torcidos de anillo 3PV4-3PV5 200-800 A
  • Conectores torcidos de anillo 3PV4-3PV5 200-800 A

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Proconect

Conectores torcidos de anillo 3PV4-3PV5 200-800 A

Technical data

Electrical preferences:
- max. voltage: 3,3kV AC,
- test voltage: 3PV4: > 10kV 50Hz 1min, 3PV5, 3PV6: > 13kV 50Hz 1min,
- current: see tables,
- contact resistance: < 1m Ω,
- IP: IP 67 - IK10,
s - designed according to: N.F.C. 63300, CEI 309-1.


Dimensions [mm]

Panel socket
  A
Diameter		 B C D
Diameter		 E
Diameter		 F
Diameter		   Weight
3PV4 105 55 75 116 92 11   1,4 kg
3PV5 130 60 85 158 120 13   3,5 kg
PIN
  A
Diameter		 B   Weight
3PV4 130 282   2,2 kg
3PV5 155 395   4,7kg
Cable connector
  A
Diameter		 B   Weight
3PV4 305 132   2,4 kg
3PV5 412 155   5,0kg
PIN
  A
Diameter		 B C D E F G H
Diameter
3PV4 11 92 116 92 116 107 20 105
3PV5 13 120 158 120 158 120 20 130

3PV4

Panel socket

Contacts Cable section[mm2] Female insert IP2 Male insert
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 330 340 N 330 397 N
2P+E+2p 250 70 10 330 342 N 330 399 N
3P+E+2p 250 50 10 330 344 N 330 405 N
3P+E+2p 250 70 10 330 156 N 330 407 N
4P+E+2p 200 35 6 330 346 N 330 413 N
4P+E+2p 200 50 6 330 158 N 330 415 N
4P+E+2p 200 70 6 331 326 N 331 327 N


Insert
Contacts Cable section
[mm2]		 Cable external diameter
[mm]		 Female insert Male insert IP2
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 32-42 330 339 N 330 396 N
2P+E+2p 250 70 10 43-54 330 341 N 330 398 N
3P+E+2p 250 50 10 32-42 330 343 N 330 404 N
3P+E+2p 250 70 10 43-54 330 155 N 330 406 N
4P+E+2p 200 35 6 32-42 330 345 N 330 421 N
4P+E+2p 200 5 6 32-42 330 157 N 330 414 N
4P+E+2p 200 70 6 43-54 331 328 N 331 329 N


Cable-socket connector


Contacts Cable section[mm2] Cable external diameter
[mm]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 32-42 330 400N
2P+E+2p 250 50 10 43-54 330 402 N
3P+E+2p 250 50 10 32-42 330 408N
3P+E+2p 250 70 10 43-54 330 410 N
4P+E+2p 200 35 6 32-42 330 416 N
4P+E+2p 200 50 6 32-42 330 224 N
4P+E+2p 200 70 6 43-54 331 330 N


PIN


Contacts Cable section
[mm2]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 330 401 N
2P+E+2p 250 70 10 330 403 N
3P+E+2p 250 50 10 330 409 N
3P+E+2p 250 70 10 330 411 N
4P+E+2p 200 35 6 330 417 N
4P+E+2p 200 50 6 330 223 N
4P+E+2p 200 70 6 331 331 N



3PV5

Panel socket


Contacts Cable section[mm2] Female insert IP2 Male insert
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 330 348 N 330 419 N
2P+E+2p 400 120 10 330 350 N 330 421 N
2P+E+2p 400 150 10 331 262 N 331 265 N
3P+E+2p 400 95 10 330 352 N 330 427 N
3P+E+2p 400 120 10 330 354 N 330 429 N
3P+E+2p 400 150 10 331 263 N 331 266 N
4P+E+2p 320 95 6 330 356 N 330 435 N
4P+E+2p 320 120 6 330 160 N 330 437 N
4P+E+2p 320 150 6 331 264 N 331 267 N


PIN

Contacts Cable section[mm2] Cable external diameter
[mm]		 Male insert Female insert IP2
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 45-55 330 347 N 330 418 N
2P+E+2p 400 120 10 45-55 330 349 N 330 420 N
2P+E+2p 400 150 10 52-62 331 268 N 331 271 N
3P+E+2p 400 95 10 45-55 330 351 N 330 426 N
3P+E+2p 400 120 10 52-62 330 353 N 330 428 N
3P+E+2p 400 150 10 52-62 331 269 N 331 272 N
3P+E+2p 400 150 10 63-76 331 429 N 331 428 N
4P+E+2p 320 95 6 52-62 330 355 N 330 434 N
4P+E+2p 320 120 6 52-62 330 159 N 330 436 N
4P+E+2p 320 150 6 52-62 331 270 N 331 273 N
4P+E+2p 320 150 6 63-76 331 431 N 331 430 N


Cable - socket connector


Contacts Cable section[mm2] Cable external diameter
[mm]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 45-55 330 422 N
2P+E+2p 400 120 10 45-55 330 424 N
2P+E+2p 400 150 10 52-62 331 274 N
3P+E+2p 400 95 10 45-55 330 430 N
3P+E+2p 400 120 10 52-62 330 432 N
3P+E+2p 400 150 10 52-52 331 275 N
4P+E+2p 320 95 6 52-62 330 438 N
4P+E+2p 320 120 6 52-62 330 440 N
4P+E+2p 320 150 6 52-62 331 276 N

PIN

Contacts Cable section
[mm2]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 330 423 N
2P+E+2p 400 120 10 330 425 N
2P+E+2p 400 150 10 331 277N
3P+E+2p 400 95 10 330 431 N
3P+E+2p 400 120 10 330 433 N
3P+E+2p 400 150 10 331 278 N
4P+E+2p 320 95 6 330 439 N
4P+E+2p 320 120 6 330 441 N
4P+E+2p 320 150 6 331 279 N


3PV6

Panel socket


Contacts Cable section
[mm2]		 Female insert IP2 Male insert
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 330 358 330 443
2P+E+2p 800 300 6 330 360 330 445
3P+E+2p 800 240 6 330 362 330 451
3P+E+2p 800 300 6 330 364 330 453
4P+E+2p 640 185 6 330 366 330 459
4P+E+2p 640 240 6 330 368 330 461


PIN

Contacts Cable section
[mm2]		 Cable external diameter
[mm]		 Male insert Female insert IP2
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 52-72 330 357 330 442
2P+E+2p 800 300 6 75-90 330 359 330 444
3P+E+2p 800 240 6 75-90 330 361 330 450
3P+E+2p 800 300 6 85-100 330 363 330 452
4P+E+2p 640 185 6 75-90 330 365 330 458
4P+E+2p 640 240 6 85-100 330 367 330 460


Cable - socket connector
Contacts Cable section[mm2] Cable external diameter
[mm]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 52-72 330 446
2P+E+2p 800 300 6 75-90 330 448
3P+E+2p 800 240 6 75-90 330 454
3P+E+2p 800 300 6 85-100 330 456
4P+E+2p 640 185 6 75-90 330 462
4P+E+2p 640 240 6 85-100 330 464


PIN

Contacts Cable section
[mm2]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 330 447
2P+E+2p 800 300 6 330 449
3P+E+2p 800 240 6 330 455
3P+E+2p 800 300 6 330 457
4P+E+2p 640 185 6 330 463


Panel socket
PIN
Cable connector
PIN
