Fabricante: METCASE

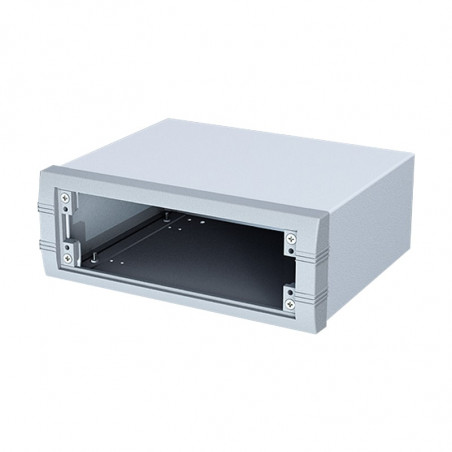

Unimet carcasa de escritorio

Unimet Desk Cases
Modern instrument cases for desktop or portable applications. With or without a tilt/swivel carry handle bar. Folded aluminium case body with diecast front bezel. Base and rear panels are removable. Front panel kit ordered separately.


Opis
1)Top cover
2)Base Panel
3)Front bezel
4)Rear panel
5)Carry handle bar
6)M3 x 8 mm (x4)
7)M4 x 16 mm (x2/4)
8)M3 x 8 mm (x4)
9)M3 x 8 mm (x4)
10)Rubber foot (x4)
11)*Front panel kit
12)*ABS feet
* Accessories
Standardowe kolory
Wymiary i rysunki Unimet
Unimet

Part No.VersionHWDd1w1
Front Panel		h1
Front Panel
M 56 23 005 1 50 (1.96”) 230 (9.05”) 190 (7.48”) 171.8 (6.76”) 199.5 (7.85”) 33.6 (1.32”)
M 56 23 105 2 85 (3.34”) 230 (9.05”) 190 (7.48”) 172.2 (6.77”) 199.5 (7.85”) 65.1 (2.56”)v
M 56 25 105 3 85 (3.34”) 250 (9.84”) 260 (10.23”) 242.2 (9.53”) 219.5 (8.64”) 65.1 (2.56”)
M 56 35 205 4 120 (4.72”) 350 (13.77”) 260 (10.23”) 242.2 (9.53”) 319.5 (12.58”) 100.1 (3.94”)
M 56 25 305 5 150 (5.90”) 250 (9.84”) 260 (10.23”) 242.2 (9.53”) 219.5 (8.64”) 130.1 (5.12”)
M 56 35 305 6 150 (5.90”) 350 (13.77”) 260 (10.23”) 242.2 (9.53”) 319.5 (12.58”) 130.1 (5.12”)



Unimet H

Part No.VersionHWDd1w1
Front Panel		h1
Front Panel
M 56 23 025 1H 50 (1.96”) 230 (9.05”) 190 (7.48”) 171.8 (6.76”) 199.5 (7.85”) 33.6 (1.32”)
M 56 23 125 2H 85 (3.34”) 230 (9.05”) 190 (7.48”) 172.2 (6.77”) 199.5 (7.85”) 65.1 (2.56”)
M 56 25 125 3H 85 (3.34”) 250 (9.84”) 260 (10.23”) 242.2 (9.53”) 219.5 (8.64”) 65.1 (2.56”)
M 56 35 225 4H 120 (4.72”) 350 (13.77”) 260 (10.23”) 242.2 (9.53”) 319.5 (12.58”) 100.1 (3.94”)
M 56 25 325 5H 150 (5.90”) 250 (9.84”) 260 (10.23”) 242.2 (9.53”) 219.5 (8.64”) 130.1 (5.12”)
M 56 35 325 6H 150 (5.90”) 350 (13.77”) 260 (10.23”) 242.2 (9.53”) 319.5 (12.58”) 130.1 (5.12”)




Front Panel Kit


Part No.VersionABCD
M 57 00 607 1/1H 33.6 (1.32”) 199.5 (7.85”) 188 (7.40”) 22.1 (0.87”)
M 57 00 608 2/2H 65.1 (2.56”) 199.5 (7.85”) 188 (7.40”) 30.8 (1.21”)
M 57 00 613 3/3H 65.1 (2.56”) 219.5 (8.64”) 208 (8.18”) 30.8 (1.21”)
M 57 00 620 4/4H 100.1(3.94”) 319.5 (12.57”) 308 (12.12”) 65.8 (2.59”)
M 57 00 616 5/5H 130.1 (5.12”) 219.5 (8.64”) 208 (8.18”) 95.8 (3.77”)
M 57 00 621 6/6H 130.1 (5.12”) 319.5 (12.57”) 308 (12.12”) 95.8 (3.77”)

PCB Mounting Kit

Part No.Article
M 56 00 001 1 + 2 x10

ABS Case Feet

Part No.Article
M 56 00 015 1 + 2 x4
M 56 00 045 1 + 2 x4 + 3 x2
