Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Technical data
Nominal cooling capacity [W] | 5000 |
---|---|
(assuming water temperature at exchanger outlet of 50 °C and ambient temperature of 35 °C) | |
Max. ambient temperature [°C] | +60 |
Cooling fluid | water |
Input voltage [V/Hz] | 1f 230 / 50/60 |
Fan type | axial D 250 mm |
Air flow [m3/h] | 1500 |
Pump type | centrifugal |
Water flow min/max [l/min] | 6,0 / 25,0 |
Nominal water pressure [bar] | 7,0 |
Input power [kW] | 0,62 / 0,65 |
Input current [A] | 3,3 /4,4 |
Water tank capacity [l] | 5 |
Water connectors | 1/4" |
Weight of empty exchanger [kg] | 14 |
Dimensions [mm] | |
Width | 230 |
Depth | 520 |
Height | 700 |
Noise level [dB(A)] | 38 |
Ingress Protecion | IP44 |
Dimensions

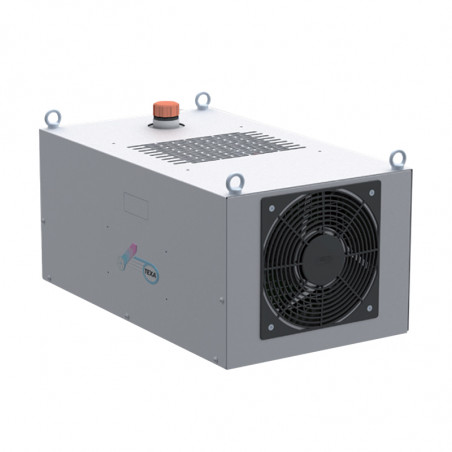

Type Saw50 - cooling power 5000W
¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?
Usted debe estar conectado
Technical data
Nominal cooling capacity [W] | 5000 |
---|---|
(assuming water temperature at exchanger outlet of 50 °C and ambient temperature of 35 °C) | |
Max. ambient temperature [°C] | +60 |
Cooling fluid | water |
Input voltage [V/Hz] | 1f 230 / 50/60 |
Fan type | axial D 250 mm |
Air flow [m3/h] | 1500 |
Pump type | centrifugal |
Water flow min/max [l/min] | 6,0 / 25,0 |
Nominal water pressure [bar] | 7,0 |
Input power [kW] | 0,62 / 0,65 |
Input current [A] | 3,3 /4,4 |
Water tank capacity [l] | 5 |
Water connectors | 1/4" |
Weight of empty exchanger [kg] | 14 |
Dimensions [mm] | |
Width | 230 |
Depth | 520 |
Height | 700 |
Noise level [dB(A)] | 38 |
Ingress Protecion | IP44 |
Dimensions
Type Saw50 - cooling power 5000W
