Fabricante: SOLEXY

Punto de acceso wifi

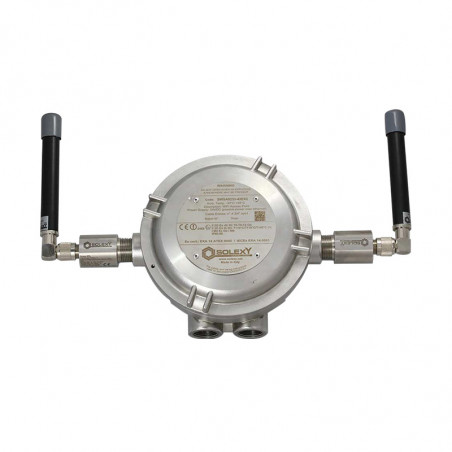

WiFi access point Ex

The SolexyWiFi access point is a cost effective multipurpose solution for a wide range of wireless applications. An internet connection is easily available and configurable via an internet brow-ser without the need of installing software or drivers for the device. With Solexy’s WA and WS enclosures and their rugged construction combined with Atex and IECEx certificates, Solexy offers a wireless device solution for installation in classified Ex areas (gas, dust and mining)



Features
Operating Functions WiFi access point (Wifi to LAN), WiFi client (LAN to WiFi), Serial (232-485) to LAN
WiFi 802.11 b/g/n, 802.3, 802.3u,
Data rate up to 150 Mbps
Connection up to 8 simultaneuos
Advanced RS-232/485-TCP/UDP forwarding, ModBus gateway, NTRIP, NTP server
Management DCHP (client/server), IEEE 802.1Q tagging, IPsec, OpenVPN, Firewall, NAT, PAT, DDNS, CARP, Static routing, Access Control, Syslog
Option GPS receiver
Heavy duty construction Explosion proof Ex d IIC enclosure made of alluminum (WA series) or stainless steel (WS series) weather proof IP66/68

Specifications

General
Power supply 6-330V DC
Power consumption 5W
Hardware
CPU ARM9 450MHz
Internal memoy 128 MB RAM
RS inteface RS232 or RS485 via RJ45 connector
LAN Ethernet 100 Mbps
WiFi 802.11 b/g/n, 802.3, 802.3u, data rate up to 150 Mbps Up to 8 simultaneuos connection
Software
Management DHCP (client/server), IEEE 802.1Q tagging, IPsec, OpenVPN, Firewall, NAT, PAT, DDNS, CARP, Static routing, Access control, Syslog
Advanced

RS-232/485-TCP/UDP forwarding, ModBus gateway, NTRIP, NTP.
Aproval
ATEX / IECEx: II 2 (1) G Ex db mb [ia Ga] IIA/IIB/IIC T6 Gb
II 2 (1) D EX mb tb [ia Da] IIIC T85oC Db
I M2 (M1) Ex db mb [ia Ma] I Mb (WS only)


Nomenclature
S WA U0 4 10 - 42 0 X4
  a   b c   d   e
a Enclosure
  WA Aluminum polyester powder coated
  WS Stainless steel AISI 316 (CF8M) electropolish
  7 2,4GHz
b Intefejs
  4 WiFi, Serial LAN
  5 WiFi, Serial, LAN, GPS
c Antenna coupler
  01 n°1 AXN series (N Female)
  11 n°2 AXN series (N Female)
  02 n°1 AXF series (RP-SMA Female)
  22 n°2 AXF series (RP-SMA Female)
  12 n°1 AXF (RP-SMA Female) + n°1 AXN (N Female)
d Cable entries
  42 n°4 3/4” npt-f (one used for antenna coupler)
  44

n°4 M25x1.5 (one used for antenna coupler


NOTE: (1)Antenna not included

Dimensional drawings
