Fabricante: CAMDENBOSS

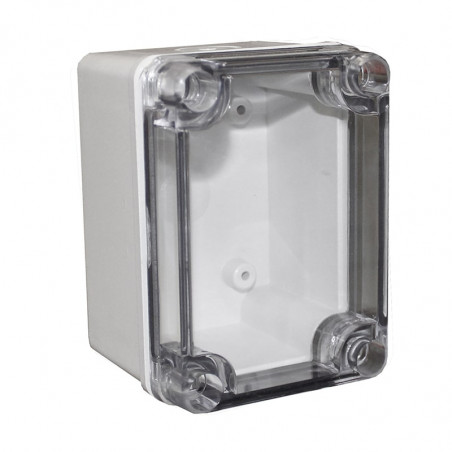

Serie X6 de policarbonato (ABS opcional)

  • Screw type lid with knock out base
  • Moulded in high quality polycarbonate
  • PCB pillars in the base for PCB mounting
  • Gasket supplied
  • Clear lid option avaliable
  • Captive, polyamide screws included
  • X6 series has been designed to meet the requirements of IP66/67
  • IK07/08 impact tested


Specification

  • Materials: Polycarbonate UL94-V0
  • Operating temperature: -40 ° C to + 120 ° C (+85° C for ABS)
  • Protection class: X6 series has been designed to meet the requirements of IP66/67, IK07/08
  • Standard colours: Grey, transparent lid option
  • Standard unit includes: Box, lid, 4 screws
  • Available accessories: Mount plates, vents, wall mounts




Solid lid Clear lid Lenght Width Height
CHDX6-221 CHDX6-221C 110 mm 80 mm 70 mm
CHDX6-222 CHDX6-222C 110 mm 80 mm 85 mm
CHDX6-223 CHDX6-223C 130 mm 80 mm 70 mm
CHDX6-224 CHDX6-224C 130 mm 80 mm 85 mm
CHDX6-225 CHDX6-225C 180 mm 80 mm 70 mm
CHDX6-226 CHDX6-226C 180 mm 80 mm 85 mm
CHDX6-227 CHDX6-227C 250 mm 80 mm 70 mm
CHDX6-228 CHDX6-228C 250 mm 80 mm 85 mm
CHDX6-229 CHDX6-229C 175 mm 127 mm 75 mm
CHDX6-230 CHDX6-230C 175 mm 127 mm 100 mm
