Fabricant: Scancon

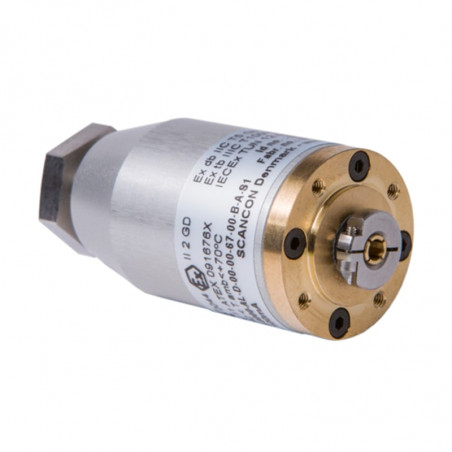

Codeurs pour travailler dans des zones potentiellement explosives

Incremental encoders with a shaft


TYP

2MCEX-A

Enkodery inkrementalne z wałkiem 2MCEX-A

2QEX-A

Enkodery inkrementalne z wałkiem 2QEX-A

2CEX-A

Enkodery inkrementalne z wałkiem 2CEX-A

2REX-A

Enkodery inkrementalne z wałkiem 2REX-A

2REX-A-SR

Enkodery inkrementalne z wałkiem 2REX-A

2REXI-A

Enkodery inkrementalne z wałkiem 2REXI-A

REXM-A-SR


Enkodery inkrementalne z wałkiem REXM-A-SR
Max. Pr. rpm. [min-1] 12000 (IP64)/3000 (IP67) 6000 3000 3000 3000 3000 3000
Shaft / bore diameter [mm] Ø4x14/Ø4x25,5/ Ø5x14/Ø 6x14 1/4"x20 3/8"x20 3/8"x22,5
Ø8x20 10x20		 10 Ø10x16 Ø10x20 Ø10x25 Ø10x27 Ø11x30 Ø0x16 Ø10x20 Ø10x25 Ø10x27 Ø11x30 Ø8 G7 Ø10x16 Ø10x20 Ø10x25 Ø10x27 Ø11x30
Dimensions [mm] Ø24x43,3 Montaż kwadratowy 63,5 68 Ø115 Ø115 Ø68x78 Ø115
Load Promo / axle shaft.[N] 10/10 50/100 50/50 50/100 50/100 50/50 50/100
Working temp [°C] -40 +70 -40 +85 -40 +75 -40 +70 -40 +70 -40 +75
Level of security IP64 (IP67) IP67 (IP66) (IP65) IP64 IP66 (IP67) IP66 (IP67) IP66 (IP67 IP68) IP66 (IP67)
Resolution [ppr] 5000 12500 10000 10000 10000 9000 10000
Exit ASIC push-pull ASIC/OL7272/ 26C31 ASICOL7272 26C31 ASIC/ OL7272/ 26C31 ASIC/OL7272/ 26C31 Totempol OL7272 26C31 ASIC/OL7272/ 26C31
Supply voltage [VDC] 4,5...30
Type of cable 8 wires (0.05 mm2.30 AWG) twisted in pairs; shielded; Halogen-free 8 wires (0.14 mm2, 26 AWG) twisted in pairs; screened   8 wires (0.14mm2,26 AWG) twisted in pairs; shielded; Halogen-free 8 wires (0.14mm2,26 AWG) twisted in pairs; shielded; Halogen-free 8 wires (0.14 mm2, 26 AWG) twisted in pairs; shielded; Halogen-free 8 wires (0.14 mm2, 26 AWG) twisted in pairs; shielded; Halogen-free
ATEX EX II 2 G/D EEx d IICT6 ATEX EX II 3 G Ex nAIICT5 (ATEX EX II 3 D Ex tDA22IP64)   ATEX EX II 2 G Ex d IICT4Gb (ATEX EX II 2 D Ex tb IIIB IP6*) ATEX EX II 2 G Ex d IICT4Gb (ATEX EX II 2 D Ex tblllBIP6*) EXII2G/DEExd IIBT6 EX 1 M2 Ex d 1 Mb EX II 2 G Ex d MC T4Gb EX II 2 D Ex tb IIIB T135°CDblP6*
Frequency pulse [kHz] 200 300   300 300 300 300


Incremental encoders with shaft output


TYP

2MCEX-H 4H

Enkodery inkrementalne 2MCEX-H 4H

2REX-H

Enkodery inkrementalne 2REX-H

2REX-H-SR

Enkodery inkrementalne 2REX-H-SR

SCH86BEX TC

Enkodery inkrementalne SCH86BEX

REXM-H-SR

Enkodery inkrementalne REXM-H-SR
Max. Pr. rpm.[min-1] 12000 IP64 (3000 IP67) 3000 3000 3000 3000
Shaft / bore diameter [mm] Ø2x15 Ø3x15 1/8"x15 Ø10/Ø12/Ø14/Ø15 Ø10/Ø12/Ø14/Ø15 Ø16/Ø20/Ø25/1" Ø10/Ø12/Ø14/Ø15
Dimensions [mm] Ø24x38 Ø68x69,5 Ø84x81 124x86 Ø84x81
Load Prom shaft / axle.[N] 10/10 50/100 50/100 Brak danych 50/100
Working temp [°C] -40 +70 -40 +70 -40 +70 -40 +70 -40 +70
Level of security IP64 (IP67) IP66 (IP67) IP66 (IP67) IP65 (IP66 / IP67) IP66 (IP67)
Resolution [ppr] 5000 10000 10000 15000 10000
Exit ASIC ASIC/OL7272/26C31 ASIC/OL7272/26C31 ASIC/OL7272/26C31 ASIC/OL7272/26C31
Supply voltage [VDC] 4,5...30
Type of cable 8 wires (0.05 mm2, 30 AWG) twisted in pairs; shielded; Halogen-free 8 przewodów (0.14 mm2, 26 AWG) skręcane parami; ekranowane; bezhalogenowe 8 wires (0.14 mm2, 26 AWG) twisted in pairs; shielded; Halogen-free 8 wires (0.14 mm2, 26 AWG) twisted in pairs; shielded; Halogen-free 8 wires (0.14 mm2, 26 AWG) twisted in pairs; shielded; Halogen-free
ATEX EXII2G/DEExdllCT6 EXII2GExdllCT4Gb (EXII2DExtblllBIP6*) EXII2GExdllCT4Gb (EXII2DExtblllBIP6*) EXII2GExdllCT5 EXII2DExtDA21 IP6X EX 1 M2 Ex d 1 Mb EXII2GExdllCT4Gb EXII2DExtblllBT135°C Db IP6*
Frequency pulse [kHz] 200 300 300 300 300


Absolute encoders (oil and gas) with shaft and shaft entrance


TYP
Enkodery (olej i gaz) absolutne z wałkiem i wejściem na wałek
EXAG-SSI with a synchronous serial interfaceEXAG-Profibusz Prodibus EXAG-DeviceNet interface with Device Net interface EXAG-CANopen with Can interface
Max. Pr. rpm.[min-1] 6000 rpm IP64, 3000rpm IP65 IP66 IP67
Shaft / bore diameter [mm] Ø10/Ø12
Dimensions [mm] 95x78x131
Load Promo / axle shaft [N] 60/80
Working temp [°C] -40 +70
Level of security IP64IP65IP66IP67IP68
Resolution [ppr] 12bit(4096) 13bit(8192) 16bit(65536)
ATEX II 2 GD Ex db IICT5 Gb and Ex tb IIICT100°C Db IP 6x


Absolute encoders (for mining) with shaft and shaft entrance


TYP Enkodery (dla górnictwa) absolutne z wałkiem i wejściem na wałek
EXME-SSI with serial synchronous interface EXME-Profibusz with Prodibus interface EXME-DeviceNet with Device Net interface EXME-CANopen with Can interface
Max. Pr. rpm.[min-1] 6000 rpm IP64, 3000rpm IP65 IP66 IP67
Shaft / bore diameter [mm] Ø10/Ø12/Ø14/Ø16
Dimensions [mm] 95x78x131
Load Promo / axle shaft. [N] 60/80
Working temp [°C] -40 +70
Level of security IP64IP65IP66IP67IP68
Resolution [ppr] 12bit(4096) 13bit(8192) 14bit (16384) 16bit(65536)
ATEX II 2 GD Ex db IICT5 Gb and Ex tb IIICT100°C Db IP 6x
